Centric 320.62147F - Centric GCX Rotor with Full Coating
$10649
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description

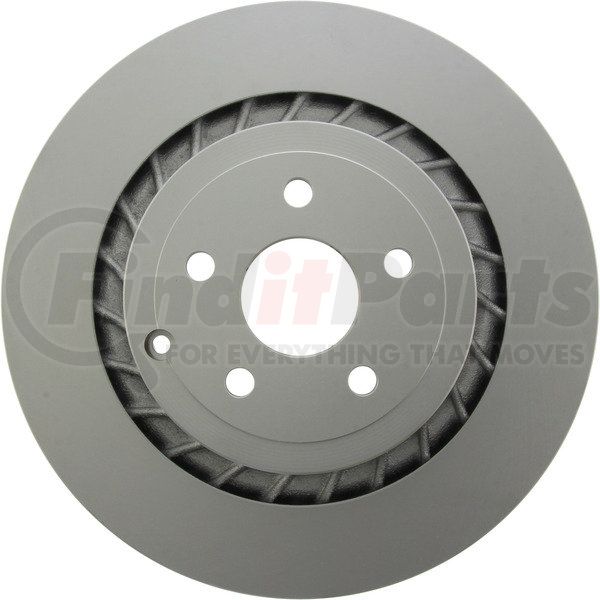

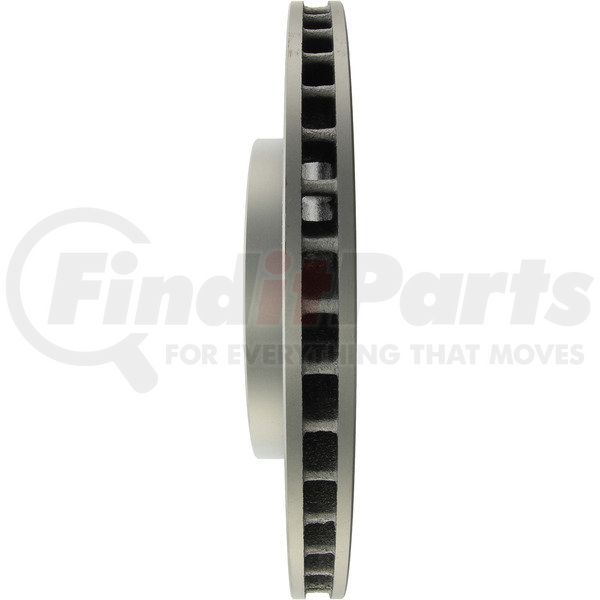

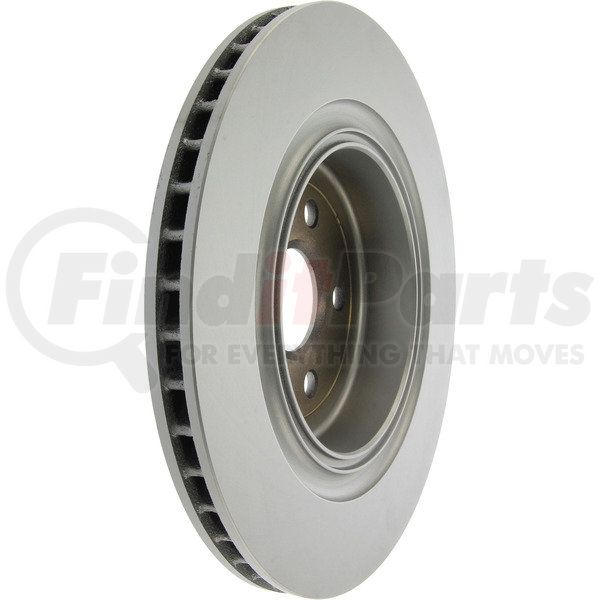

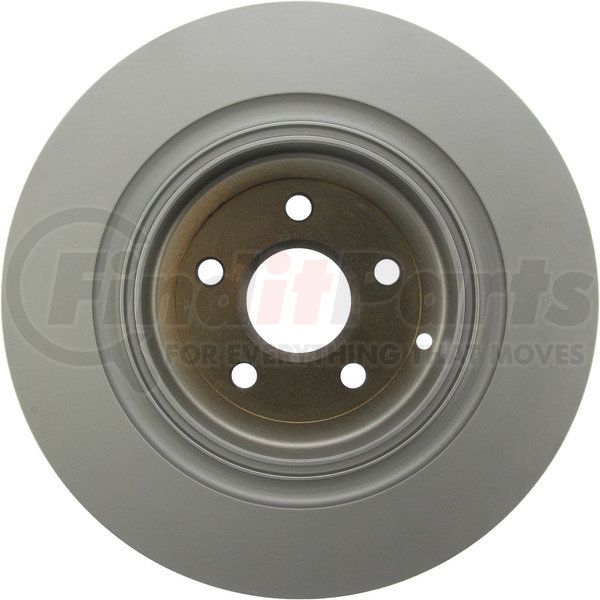

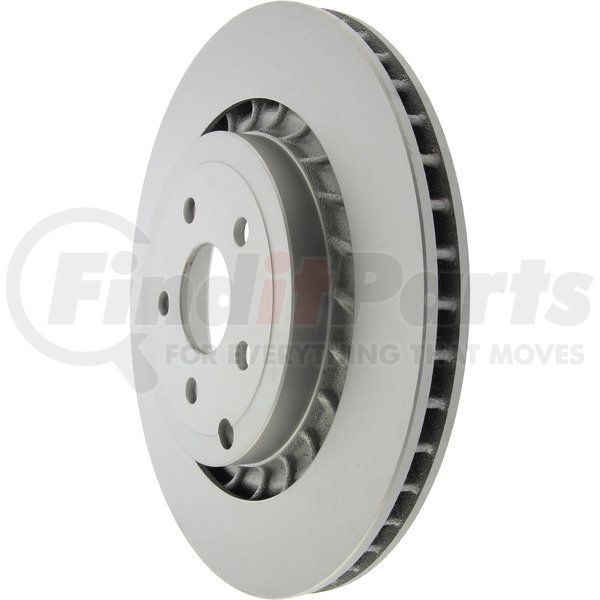

Centric GCX Rotor with Full Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron Formulation Enhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
Product Attributes
| Weight [cntrc] Kgs | 11.280 |
| Weight [cntrc] Lbs | 24.850 |
| Vane Style [cntrc] | Curved |
| Misc Holes [cntrc] | 1 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Hat Id [cntrc] Mm | 204.100 |
| OEM Vane Count [cntrc] | 46 |
| Disc Mounting [cntrc] | Floating / DIH |
| Product Grade [cntrc] | Premium |
| Hat Id [cntrc] In | 8.035 |
| Discard Thickness | 1.024 IN |
| Discard Thickness | 26.000 MM |
| Nominal Thickness | 28.100 MM |
| Nominal Thickness | 1.106 IN |
| Disc Finish | Fully Coated |
| Hat Finish | Coated |
| Overall Height | 51.900 MM |
| Overall Height | 2.043 IN |
| Outside Diameter | 14.173 IN |
| Outside Diameter | 360.000 MM |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 2.657 IN |
| Center Hole Diameter | 67.500 MM |
| Mounting Bolt Hole Circle Diameter | 120.000 MM |
| Mounting Bolt Hole Circle Diameter | 4.724 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 16.300 MM |
| Stud/Lug Hole Diameter | 0.642 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590392043 |
Part Interchanges
CENTRIC 320.62147F Cross Reference
We have 2 alternatives for the 320.62147F by CENTRIC:
Fits Vehicles
- Chevrolet SS (2015-2016)
