Centric 320.62096F - Centric GCX Rotor with Full Coating
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
CENTRIC part description
Product Description

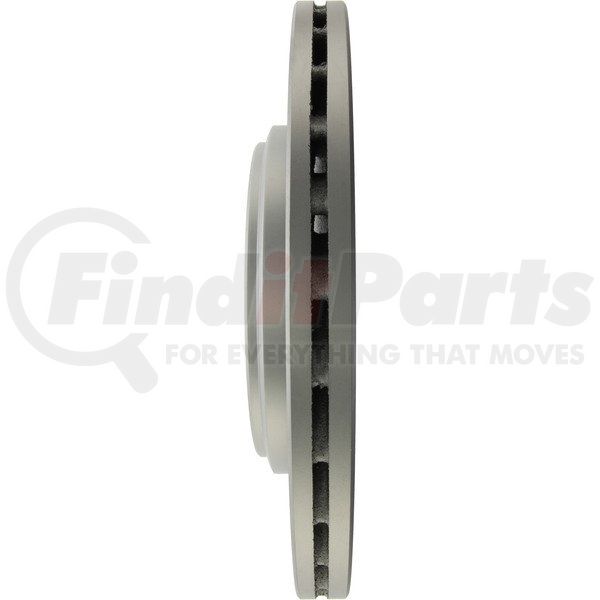

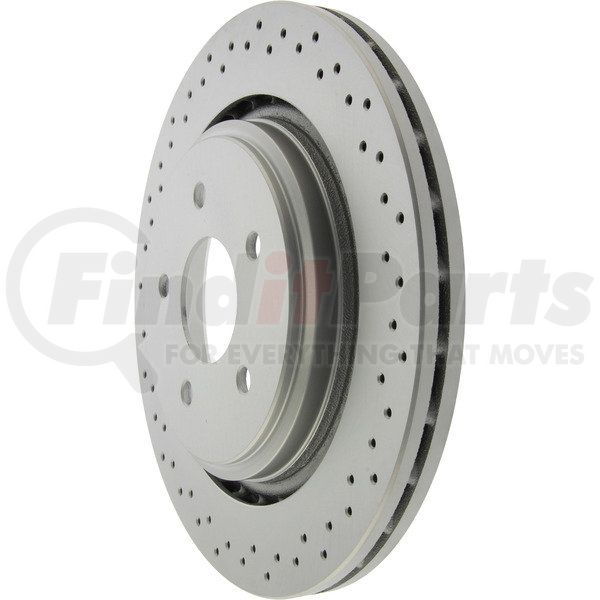

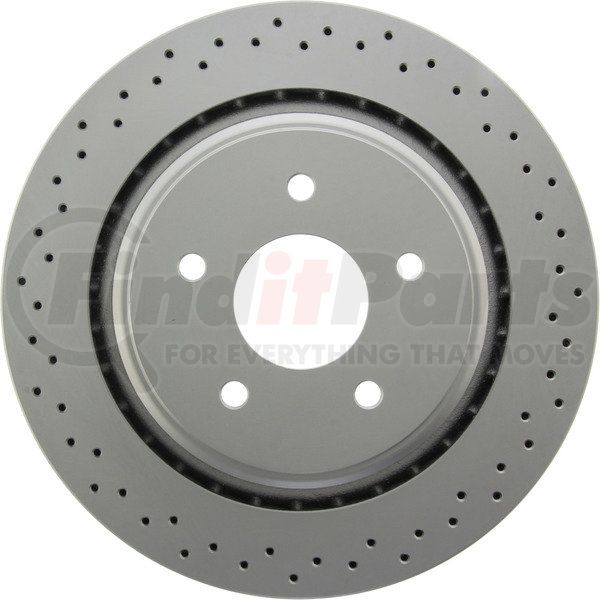

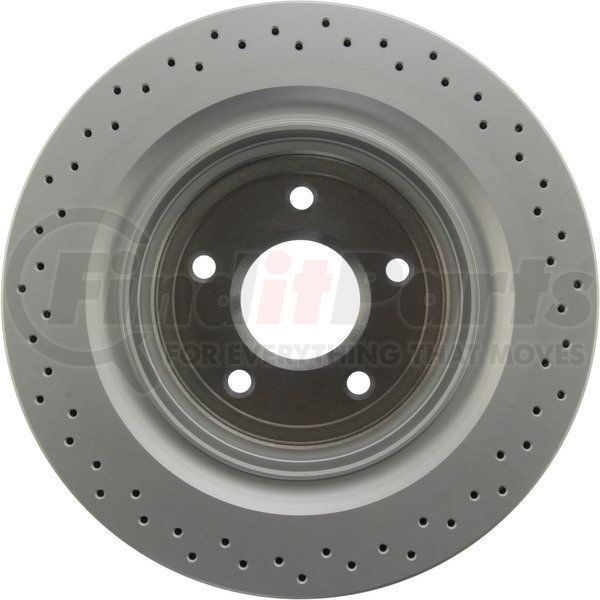

Centric GCX Rotor with Full Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron Formulation Enhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
Product Attributes
Disc Mounting [cntrc] | Floating / DIH |
Misc Holes [cntrc] | 0 |
Max Pb Drum Dia [cntrc] In | 7.496 |
Weight [cntrc] Lbs | 20.200 |
Product Grade [cntrc] | Premium |
California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
Max Pb Drum Dia [cntrc] Mm | 190.400 |
Weight [cntrc] Kgs | 9.180 |
Discard Thickness | 0.945 IN |
Discard Thickness | 24.000 MM |
Nominal Thickness | 1.024 IN |
Nominal Thickness | 26.000 MM |
Disc Finish | Fully Coated |
Hat Finish | Coated |
Overall Height | 49.300 MM |
Overall Height | 1.941 IN |
Outside Diameter | 330.000 MM |
Outside Diameter | 12.992 IN |
ABS Tone Ring Included | No |
Surface Type | Smooth |
Solid Or Vented Type Rotor | Vented |
Nominal Drum Diameter | 190.000 MM |
Nominal Drum Diameter | 7.480 IN |
Bearings Included | No |
Center Hole Diameter | 70.700 MM |
Center Hole Diameter | 2.783 IN |
Mounting Bolt Hole Circle Diameter | 120.000 MM |
Mounting Bolt Hole Circle Diameter | 4.724 IN |
Stud/Lug Hole Quantity | 5 |
Stud/Lug Hole Diameter | 13.400 MM |
Stud/Lug Hole Diameter | 0.528 IN |
Additional Information
Harmonized Tariff Code (HTS) | 8708305030 |
NAFTA Preference Criterion Code | B |
Country of Origin (Primary) | CN |
UPC | 889590391770 |
Part Interchanges
CENTRIC 320.62096F Cross Reference
We have 2 alternatives for the 320.62096F by CENTRIC:
Fits Vehicles
- Cadillac XLR (2006-2009)
- Chevrolet Corvette (2005-2013)
