Centric 320.46076C - Centric GCX HC Rotor with High Carbon Content and Partial Coating
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
CENTRIC part description
Product Description

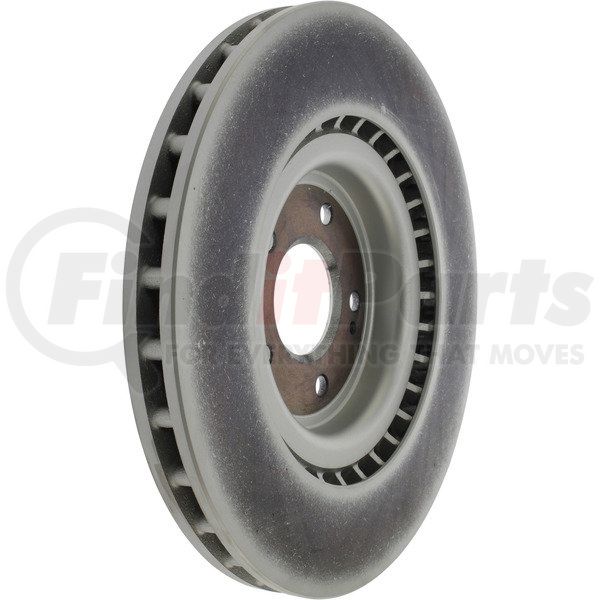

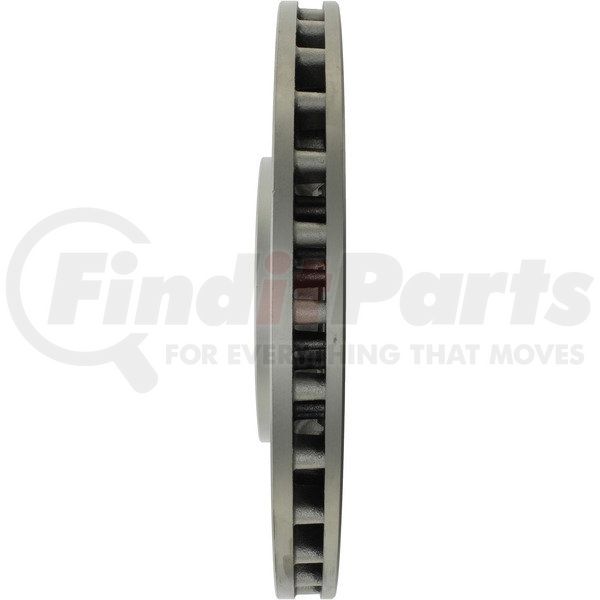

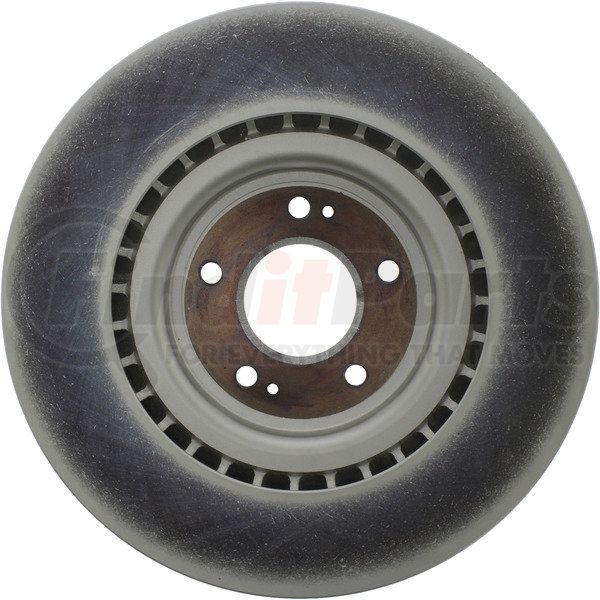

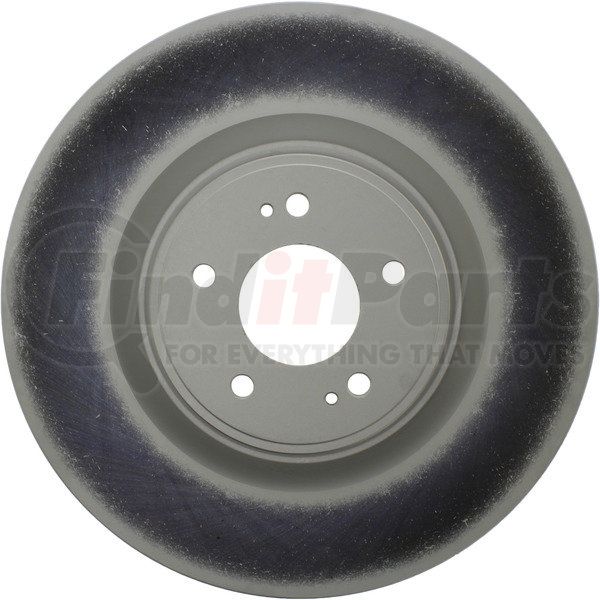

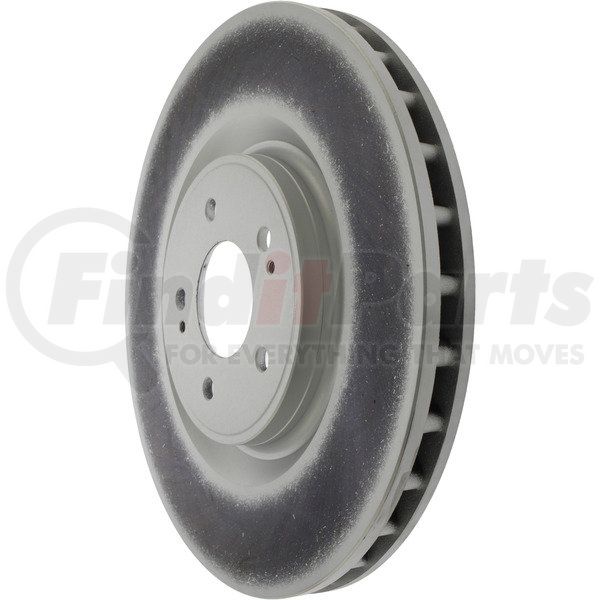

Centric GCX HC Rotor with High Carbon Content and Partial Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron Formulation Enhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
Product Attributes
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Weight [cntrc] Kgs | 11.500 |
| Hat Id [cntrc] Mm | 159.700 |
| Hat Id [cntrc] In | 6.287 |
| Product Grade [cntrc] | Premium |
| Weight [cntrc] Lbs | 25.300 |
| Misc Holes [cntrc] | 2 |
| Disc Mounting [cntrc] | Floating |
| Vane Style [cntrc] | Pillar |
| Discard Thickness | 1.181 IN |
| Discard Thickness | 30.000 MM |
| Nominal Thickness | 32.000 MM |
| Nominal Thickness | 1.260 IN |
| Disc Finish | Partially Coated |
| Hat Finish | Coated |
| Overall Height | 43.700 MM |
| Overall Height | 1.720 IN |
| Outside Diameter | 13.780 IN |
| Outside Diameter | 350.000 MM |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 2.717 IN |
| Center Hole Diameter | 69.000 MM |
| Mounting Bolt Hole Circle Diameter | 114.300 MM |
| Mounting Bolt Hole Circle Diameter | 4.500 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 12.500 MM |
| Stud/Lug Hole Diameter | 0.492 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590425222 |
Part Interchanges
CENTRIC 320.46076C Cross Reference
We have 3 alternatives for the 320.46076C by CENTRIC:
