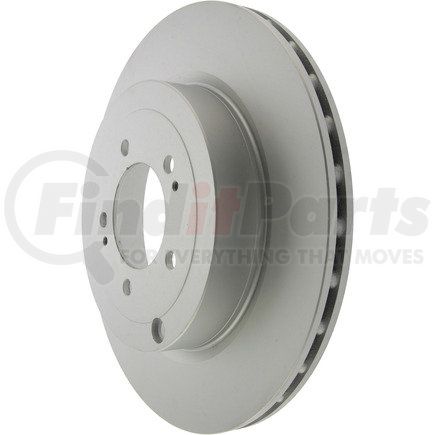

Centric 320.46075H - Centric GCX Rotor with Full Coating and High Carbon Content
$8899
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description
Centric GCX Rotor with Full Coating and High Carbon Content
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron Formulation Enhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
Product Attributes
| Max Pb Drum Dia [cntrc] Mm | 191.000 |
| Vane Style [cntrc] | Pillar |
| Disc Mounting [cntrc] | Floating / DIH |
| Hat Id [cntrc] In | 7.480 |
| Hat Id [cntrc] Mm | 190.000 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Weight [cntrc] Kgs | 8.800 |
| Product Grade [cntrc] | Premium |
| Max Pb Drum Dia [cntrc] In | 7.520 |
| Weight [cntrc] Lbs | 19.350 |
| Misc Holes [cntrc] | 3 |
| Discard Thickness | 0.787 IN |
| Discard Thickness | 20.000 MM |
| Nominal Thickness | 22.000 MM |
| Nominal Thickness | 0.866 IN |
| Disc Finish | Fully Coated |
| Hat Finish | Coated |
| Overall Height | 59.100 MM |
| Overall Height | 2.327 IN |
| Outside Diameter | 330.000 MM |
| Outside Diameter | 12.992 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Nominal Drum Diameter | 189.900 MM |
| Nominal Drum Diameter | 7.476 IN |
| Bearings Included | No |
| Center Hole Diameter | 80.000 MM |
| Center Hole Diameter | 3.150 IN |
| Mounting Bolt Hole Circle Diameter | 114.300 MM |
| Mounting Bolt Hole Circle Diameter | 4.500 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 12.400 MM |
| Stud/Lug Hole Diameter | 0.488 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590390254 |
Part Interchanges
CENTRIC 320.46075H Cross Reference
We have 3 alternatives for the 320.46075H by CENTRIC:
Fits Vehicles
- Mitsubishi Lancer (2008-2015)
