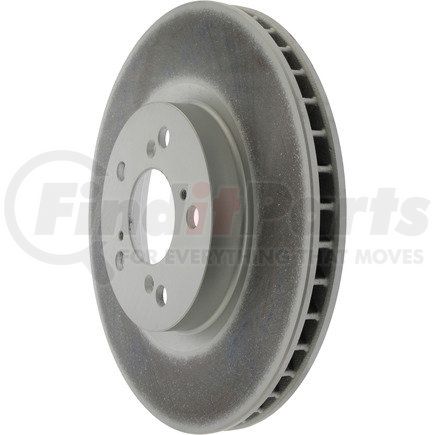

Centric 320.40066C - Centric GCX HC Rotor with High Carbon Content and Partial Coating
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
CENTRIC part description
Product Description
Centric GCX HC Rotor with High Carbon Content and Partial Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron Formulation Enhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
Product Attributes
| Weight [cntrc] Lbs | 18.500 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Disc Mounting [cntrc] | Floating |
| Weight [cntrc] Kgs | 8.410 |
| Misc Holes [cntrc] | 4 |
| Product Grade [cntrc] | Premium |
| Vane Style [cntrc] | Straight |
| Discard Thickness | 26.000 MM |
| Discard Thickness | 1.024 IN |
| Nominal Thickness | 28.000 MM |
| Nominal Thickness | 1.102 IN |
| Disc Finish | Partially Coated |
| Hat Finish | Coated |
| Overall Height | 50.000 MM |
| Overall Height | 1.969 IN |
| Outside Diameter | 12.559 IN |
| Outside Diameter | 319.000 MM |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 2.760 IN |
| Center Hole Diameter | 70.100 MM |
| Mounting Bolt Hole Circle Diameter | 120.000 MM |
| Mounting Bolt Hole Circle Diameter | 4.724 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 14.700 MM |
| Stud/Lug Hole Diameter | 0.579 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590406542 |
Part Interchanges
CENTRIC 320.40066C Cross Reference
We have 3 alternatives for the 320.40066C by CENTRIC:
