Centric 320.39001F - Centric GCX Rotor with Full Coating
$6349
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description

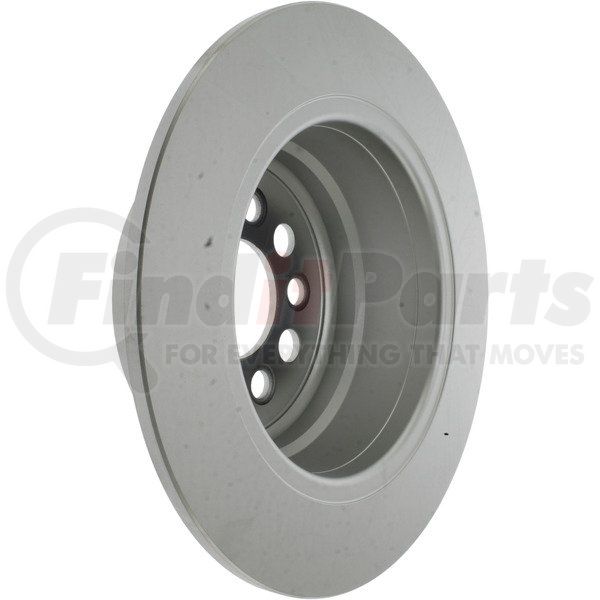

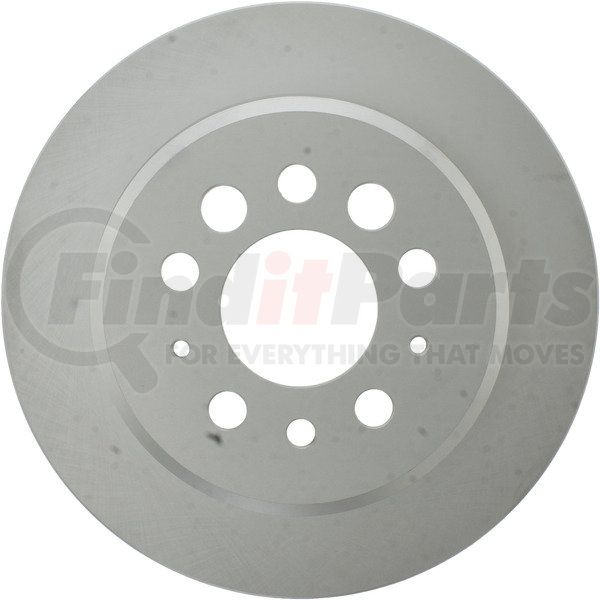

Centric GCX Rotor with Full Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
Product Attributes
| Weight [cntrc] Kgs | 5.670 |
| Weight [cntrc] Lbs | 12.470 |
| Misc Holes [cntrc] | 5 |
| Product Grade [cntrc] | Premium |
| Disc Mounting [cntrc] | Floating / DIH |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Discard Thickness | 8.600 MM |
| Discard Thickness | 0.339 IN |
| Nominal Thickness | 0.378 IN |
| Nominal Thickness | 9.600 MM |
| Disc Finish | Fully Coated |
| Hat Finish | Coated |
| Overall Height | 88.200 MM |
| Overall Height | 3.472 IN |
| Outside Diameter | 295.500 MM |
| Outside Diameter | 11.634 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Solid |
| Nominal Drum Diameter | 177.800 MM |
| Nominal Drum Diameter | 7.000 IN |
| Bearings Included | No |
| Center Hole Diameter | 68.000 MM |
| Center Hole Diameter | 2.677 IN |
| Mounting Bolt Hole Circle Diameter | 108.000 MM |
| Mounting Bolt Hole Circle Diameter | 4.252 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 16.500 MM |
| Stud/Lug Hole Diameter | 0.650 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590388435 |
Part Interchanges
CENTRIC 320.39001F Cross Reference
We have 1 alternatives for the 320.39001F by CENTRIC:
Fits Vehicles
- Volvo 164 (1969-1974)
- Volvo 145 (1968-1974)
- Volvo 144 (1967-1974)
- Volvo 142 (1967-1974)
- Volvo 1800 (1968-1973)
