CENTRIC part description

Product Description

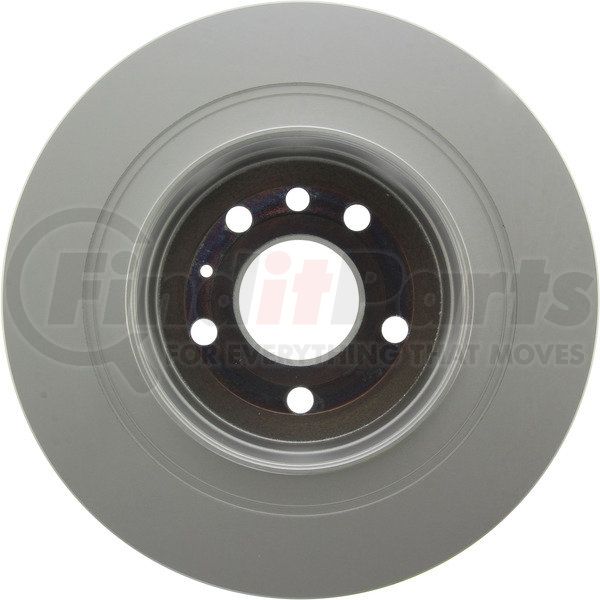

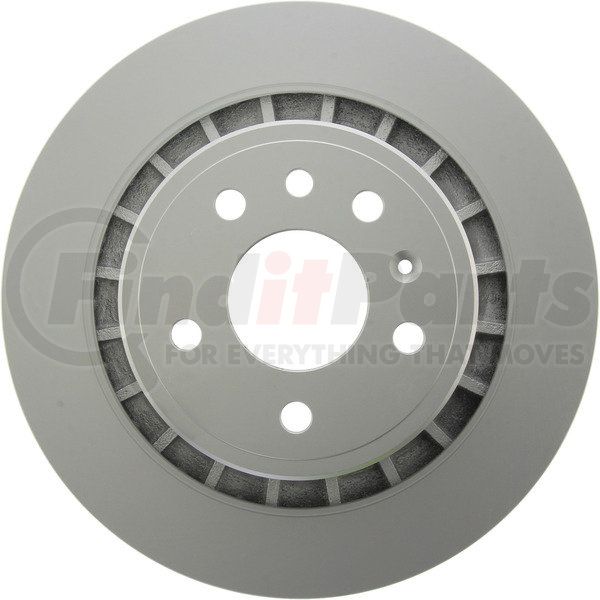

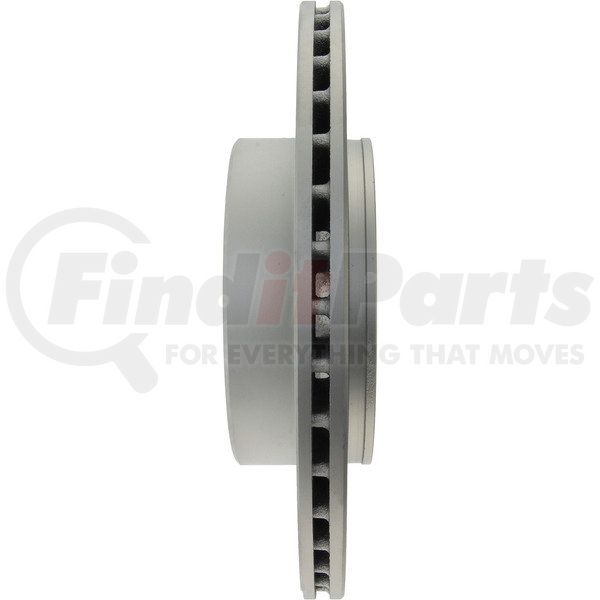

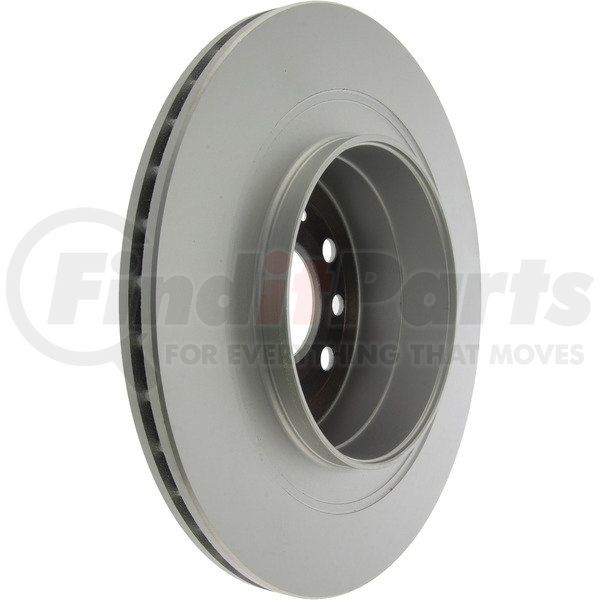

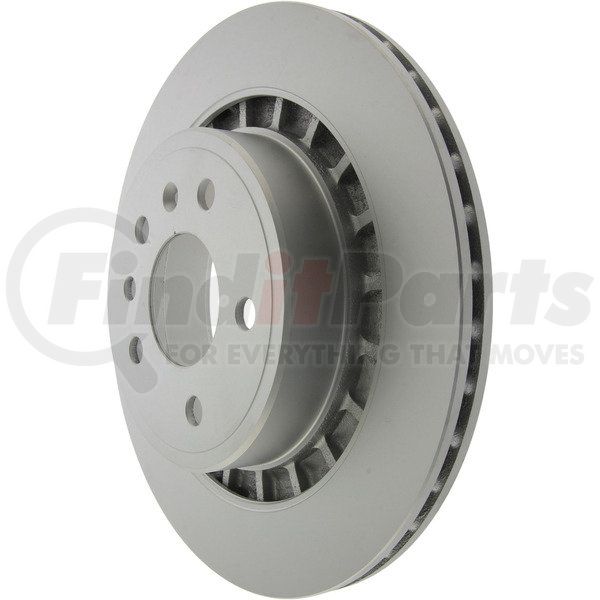

Centric GCX Rotor with Full Coating and High Carbon Content

Features & Benefits

  • RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron Formulation Enhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs

Product Attributes

Product Grade [cntrc] Premium
Weight [cntrc] Kgs 6.850
Misc Holes [cntrc] 2
Disc Mounting [cntrc] Floating / DIH
Vane Style [cntrc] Straight
Weight [cntrc] Lbs 15.080
California Proposition 65 Text [cntrc] WARNING: Cancer and Reproductive Harm
Stud/Lug Hole Diameter 0.555 IN
Stud/Lug Hole Diameter 14.100 MM
Stud/Lug Hole Quantity 5
Mounting Bolt Hole Circle Diameter 4.331 IN
Mounting Bolt Hole Circle Diameter 110.000 MM
Center Hole Diameter 2.579 IN
Center Hole Diameter 65.500 MM
Bearings Included No
Nominal Drum Diameter 6.299 IN
Nominal Drum Diameter 160.000 MM
Solid Or Vented Type Rotor Vented
Surface Type Smooth
ABS Tone Ring Included No
Outside Diameter 11.772 IN
Outside Diameter 299.000 MM
Overall Height 2.724 IN
Overall Height 69.200 MM
Hat Finish Coated
Disc Finish Fully Coated
Nominal Thickness 0.787 IN
Nominal Thickness 20.000 MM
Discard Thickness 18.000 MM
Discard Thickness 0.709 IN

Additional Information

Harmonized Tariff Code (HTS) 8708305030
NAFTA Preference Criterion Code B
Country of Origin (Primary) CN
UPC 889590388381

Part Interchanges

CENTRIC 320.38015H Cross Reference

We have 1 alternatives for the 320.38015H by CENTRIC:

Fits Vehicles

  • Saab 9-5 (2002-2004, 2007-2010)
