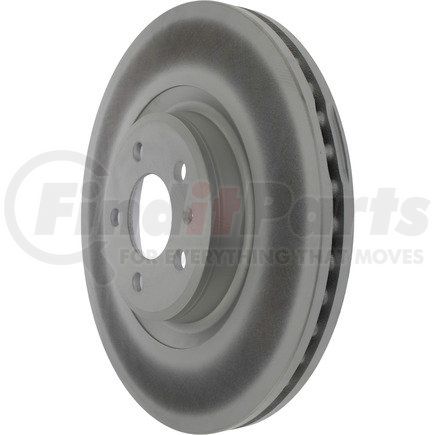

Centric 320.33138C - Centric GCX HC Rotor with High Carbon Content and Partial Coating
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
CENTRIC part description
Product Description
Centric GCX HC Rotor with High Carbon Content and Partial Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron Formulation Enhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
Product Attributes
| Weight [cntrc] Lbs | 25.500 |
| Hat Id [cntrc] Mm | 150.900 |
| Misc Holes [cntrc] | 1 |
| Product Grade [cntrc] | Premium |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Weight [cntrc] Kgs | 11.560 |
| Disc Mounting [cntrc] | Floating |
| Vane Style [cntrc] | Pillar |
| Hat Id [cntrc] In | 5.941 |
| Discard Thickness | 1.102 IN |
| Discard Thickness | 28.000 MM |
| Nominal Thickness | 30.000 MM |
| Nominal Thickness | 1.181 IN |
| Disc Finish | Partially Coated |
| Hat Finish | Coated |
| Overall Height | 52.100 MM |
| Overall Height | 2.051 IN |
| Outside Diameter | 13.583 IN |
| Outside Diameter | 345.000 MM |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 2.677 IN |
| Center Hole Diameter | 68.000 MM |
| Mounting Bolt Hole Circle Diameter | 112.000 MM |
| Mounting Bolt Hole Circle Diameter | 4.409 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 15.300 MM |
| Stud/Lug Hole Diameter | 0.602 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590424690 |
Part Interchanges
CENTRIC 320.33138C Cross Reference
We have 2 alternatives for the 320.33138C by CENTRIC:
