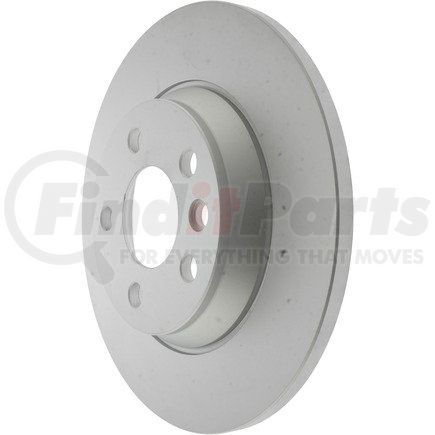

Centric 320.33076H - Centric GCX Rotor with Full Coating and High Carbon Content
$4199
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description
Centric GCX Rotor with Full Coating and High Carbon Content
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron Formulation Enhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
Product Attributes
| Weight [cntrc] Lbs | 12.500 |
| Weight [cntrc] Kgs | 5.680 |
| Disc Mounting [cntrc] | Floating |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Misc Holes [cntrc] | 1 |
| Product Grade [cntrc] | Premium |
| Discard Thickness | 0.453 IN |
| Discard Thickness | 11.500 MM |
| Nominal Thickness | 0.535 IN |
| Nominal Thickness | 13.600 MM |
| Disc Finish | Fully Coated |
| Hat Finish | Coated |
| Overall Height | 41.200 MM |
| Overall Height | 1.622 IN |
| Outside Diameter | 11.575 IN |
| Outside Diameter | 294.000 MM |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Solid |
| Nominal Drum Diameter | 146.000 MM |
| Nominal Drum Diameter | 5.748 IN |
| Bearings Included | No |
| Center Hole Diameter | 68.000 MM |
| Center Hole Diameter | 2.677 IN |
| Mounting Bolt Hole Circle Diameter | 112.000 MM |
| Mounting Bolt Hole Circle Diameter | 4.409 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 16.500 MM |
| Stud/Lug Hole Diameter | 0.650 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590386752 |
Part Interchanges
CENTRIC 320.33076H Cross Reference
We have 2 alternatives for the 320.33076H by CENTRIC:
Fits Vehicles
- Volkswagen Sharan (2002-2008)
- Volkswagen EuroVan (2001-2003)
