CENTRIC 320.33047H Part Description
Manufacturer
Product Description

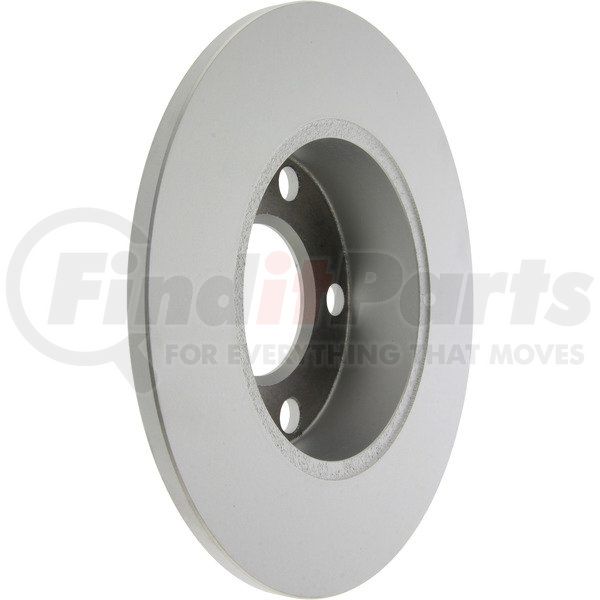

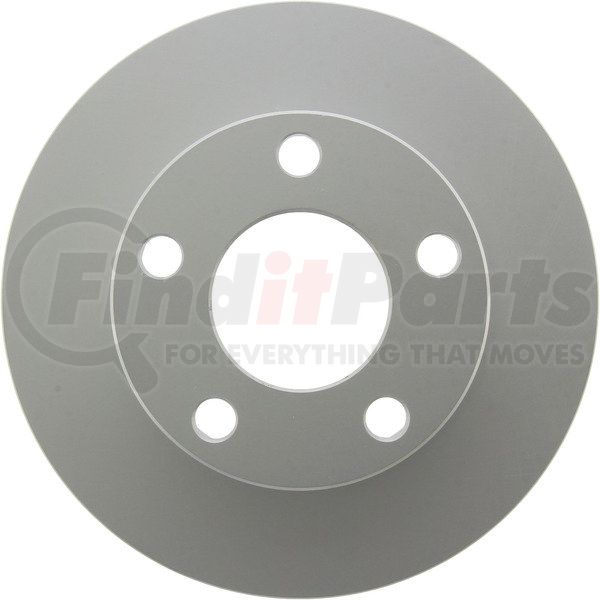

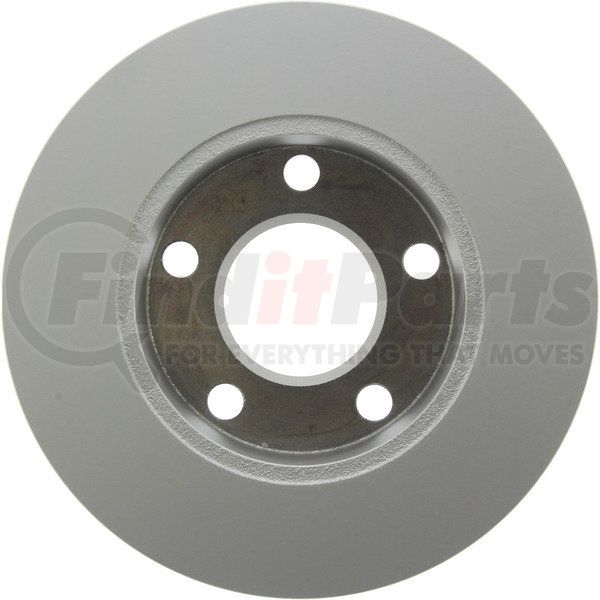

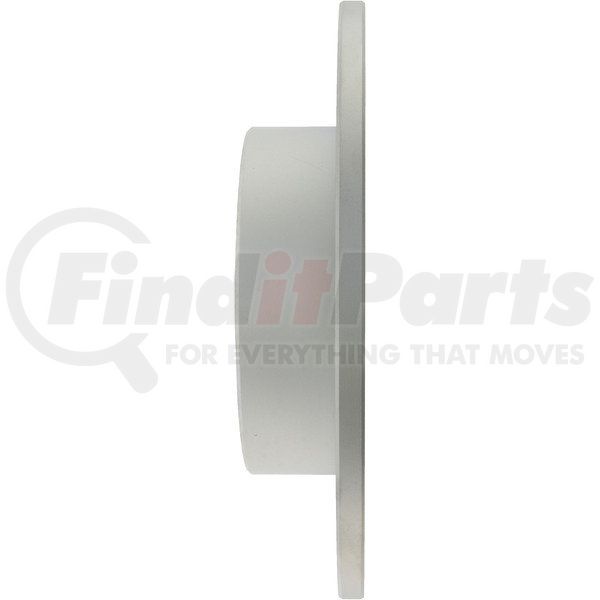

Centric GCX Rotor with Full Coating and High Carbon Content
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron Formulation Enhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
CENTRIC 320.33047H Specifications
Product Attributes
| Weight [cntrc] Lbs | 7.500 |
| Weight [cntrc] Kgs | 3.410 |
| Misc Holes [cntrc] | 0 |
| Product Grade [cntrc] | Premium |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Disc Mounting [cntrc] | Floating |
| Stud/Lug Hole Diameter | 0.602 IN |
| Stud/Lug Hole Diameter | 15.300 MM |
| Stud/Lug Hole Quantity | 5 |
| Mounting Bolt Hole Circle Diameter | 4.409 IN |
| Mounting Bolt Hole Circle Diameter | 112.000 MM |
| Center Hole Diameter | 2.677 IN |
| Center Hole Diameter | 68.000 MM |
| Bearings Included | No |
| Solid Or Vented Type Rotor | Solid |
| Surface Type | Smooth |
| ABS Tone Ring Included | No |
| Outside Diameter | 245.000 MM |
| Outside Diameter | 9.646 IN |
| Overall Height | 1.870 IN |
| Overall Height | 47.500 MM |
| Hat Finish | Coated |
| Disc Finish | Fully Coated |
| Nominal Thickness | 0.390 IN |
| Nominal Thickness | 10.000 MM |
| Discard Thickness | 8.000 MM |
| Discard Thickness | 0.315 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590386691 |
CENTRIC 320.33047H Part Interchanges
| Brand | Part Number |
|---|---|
| Raybestos Brakes | 96939FZN, 96939R, 96939 |
CENTRIC 320.33047H Fits Vehicles
- Audi A4 Quattro (1996-2001)
- Volkswagen Passat (1999-2005)
CENTRIC 320.33047H Cross References
We have 3 alternatives for the 320.33047H by CENTRIC:
