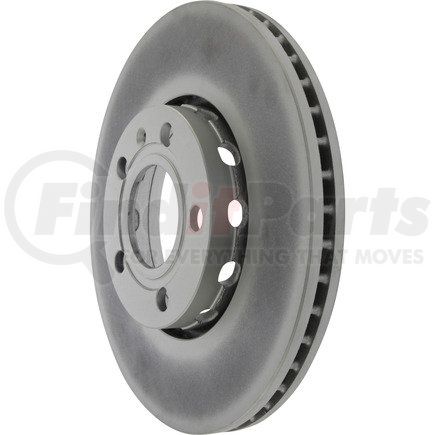

Centric 320.33039C - Centric GCX HC Rotor with High Carbon Content and Partial Coating
$7699
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
CENTRIC part description
Product Description
Centric GCX HC Rotor with High Carbon Content and Partial Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
Product Attributes
| Weight [cntrc] Kgs | 7.950 |
| Weight [cntrc] Lbs | 17.500 |
| Disc Mounting [cntrc] | Floating |
| Vane Style [cntrc] | Straight |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Product Grade [cntrc] | Premium |
| Misc Holes [cntrc] | 0 |
| Notes [cntrc] | Vented Hat |
| Discard Thickness | 23.000 MM |
| Discard Thickness | 0.906 IN |
| Nominal Thickness | 0.980 IN |
| Nominal Thickness | 25.000 MM |
| Disc Finish | Partially Coated |
| Hat Finish | Coated |
| Overall Height | 46.400 MM |
| Overall Height | 1.827 IN |
| Outside Diameter | 11.339 IN |
| Outside Diameter | 288.000 MM |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 2.677 IN |
| Center Hole Diameter | 68.000 MM |
| Mounting Bolt Hole Circle Diameter | 112.000 MM |
| Mounting Bolt Hole Circle Diameter | 4.409 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 15.500 MM |
| Stud/Lug Hole Diameter | 0.610 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590424621 |
Part Interchanges
CENTRIC 320.33039C Cross Reference
We have 3 alternatives for the 320.33039C by CENTRIC:
