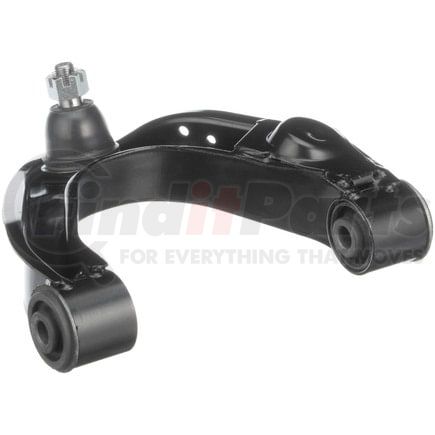

Delphi TC5726 - Control Arm and Ball Joint Assembly
$5049
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Control Arm and Ball Joint Assembly
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Right Upper |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Mounting Type | Bolt In |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Stamped |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 1 |
| Adjustable | No |
| Greasable | No |
| Control Arm Maximum Width | 4.331 IN |
| Control Arm Maximum Width | 110.00 MM |
| Control Arm Color | Black |
| Ball Joint Thread Diameter | 0.551 IN |
| Ball Joint Thread Diameter | 14.00 MM |
| Ball Joint Stud Length | 0.925 IN |
| Ball Joint Stud Length | 23.50 MM |
| Control Arm Maximum Length | 10.787 IN |
| Control Arm Maximum Length | 274.00 MM |
| Bushing Material | Rubber |
| Mounting Hole Diameter | 0.236 IN |
| Mounting Hole Diameter | 6.00 MM |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Painted |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Thread Diameter | 14.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Thread Diameter | 0.551 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Country of Origin (Primary) | TR |
| UPC | 00689604313916 |
| VMRS Code | 016001002 |
| UNSPSC | 25172013 |
Part Interchanges
- MOOG Chassis Products K90663
- MOOG Chassis Products RK621901
- Datsun/Nissan 54524-2S485
- Datsun/Nissan 54524-2S486
- Datsun/Nissan 54524-8B425
- Datsun/Nissan 54524-9Z050
- Datsun/Nissan 54525-1Z600
- MAS Industries CB69088
- MAS Industries CB69088PR
- Dorman 522-360
- MOOG Chassis Products RK642554
- 54524-1Z600
- 54524-8B450
- GS30173
- JBJ934
- CMS30173
Fits Vehicles
- Nissan Frontier (1998-2004)
