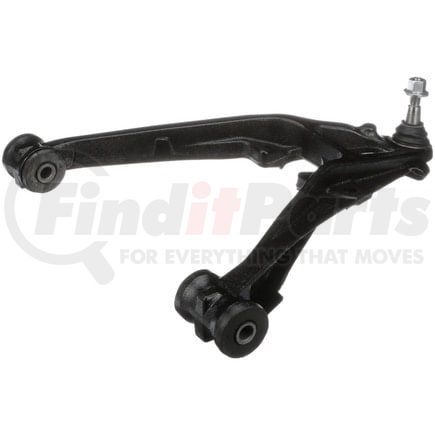

Delphi TC5574 - Control Arm and Ball Joint Assembly
$12049
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Control Arm and Ball Joint Assembly
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Left Lower |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Mounting Type | Press In |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 2 |
| Adjustable | No |
| Greasable | No |
| Control Arm Maximum Width | 19.685 IN |
| Control Arm Maximum Width | 500.00 MM |
| Control Arm Color | Black |
| Ball Joint Thread Diameter | 0.630 IN |
| Ball Joint Thread Diameter | 16.00 MM |
| Ball Joint Stud Length | 3.740 IN |
| Ball Joint Stud Length | 95.00 MM |
| Control Arm Maximum Length | 20.669 IN |
| Control Arm Maximum Length | 525.00 MM |
| Bushing Material | Rubber |
| Mounting Hole Diameter | 0.453 IN |
| Mounting Hole Diameter | 11.50 MM |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Painted |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Thread Diameter | 16.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Thread Diameter | 0.630 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604301388 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
Part Interchanges
- MOOG Chassis Products CK620956
- MOOG Chassis Products K6541
- MOOG Chassis Products RK620888
- General Motors 20869199
- General Motors 25788112
- MAS Industries CB91193
- MAS Industries CB91193PR
- TRW JTC1950
- Dorman 521-645
- Dorman CB91193
- Dorman CB91193PR
- 15167932
- 15948967
- GS50152
- CTXMS50152
- CMS50152
- 20869201
- 22952193
- 25788114
- 25868823
Fits Vehicles
- Chevrolet Suburban (2016-2018)
- Cadillac Escalade EXT (2007-2013)
- Cadillac Escalade ESV (2007-2014)
- GMC Sierra 1500 (2007-2016)
- Chevrolet Silverado 1500 (2007-2016)
- GMC Yukon XL 1500 (2007-2014)
- Chevrolet Avalanche (2007-2013)
- Chevrolet Suburban 1500 (2007-2014)
- GMC Yukon (2007-2016)
- Chevrolet Tahoe (2007-2016)
- Cadillac Escalade (2007-2014)
