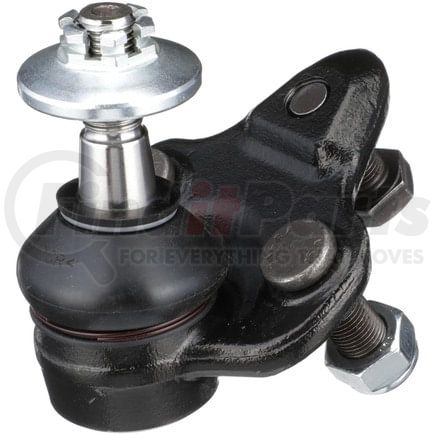

(888) 312-8812 Login SignupDELPHI TC5492 Ball Joint
Tap to view 8 more
$3799
Limited availability at this price!
In Stock
Get it by Thursday, Dec 18
DELPHI TC5492 Part Description
DELPHI TC5492 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Lower |
| Material | Steel |
| Color | Black |
| Stud Thread Diameter | 14 MM |
| Castle Nut Included | Yes |
| Grease Fitting Included | No |
| Suspension Grade Type | Standard |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 108 MM |
| Cotter Pin Included | Yes |
| Cotter Pin Hole | Yes |
| Mounting Hardware Included | Yes |
| Mounting Bolt Length | 1.181 IN |
| Mounting Bolt Length | 30.00 MM |
| Washers Included | No |
| Height | 3.661 IN |
| Nuts Included | Yes |
| Mounting Hole Quantity | 3 |
| Adjustable | No |
| Greaseable | No |
| Stud Thread Length | 1.063 IN |
| Wrench Size | 19mm |
| Stud Type | Threaded |
| Mounting Type | Bolt-In |
| Dust Boot Material | Rubber |
| Mounting Bolt Shank Diameter | 12.00 MM |
| Mounting Bolt Head Diameter | 0.827 IN |
| Mounting Bolt Head Diameter | 21.00 MM |
| Mounting Bolts Included | Yes |
| Mounting Bolt Thread Pitch | 1.25 MM |
| Mounting Bolt Thread Length | 28.00 MM |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Taper Per Foot | 0.167 IN |
| Stud Tapered End 2 Diameter | 0.591 IN |
| Stud Tapered End 2 Diameter | 15 MM |
| Stud Tapered End 1 Diameter | 0.709 IN |
| Stud Tapered End 1 Diameter | 18 MM |
| Stud Thread Pitch | 1.5 MM |
| Length | 84.00 MM |
| Length | 3.310 IN |
| Stud Thread Diameter | 0.55 IN |
| Height | 92.99 MM |
| Stud Thread Length | 27 MM |
| Mounting Bolt Shank Diameter | 0.470 IN |
| Mounting Bolt Thread Length | 1.100 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| UPC | 00689604299159 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DELPHI TC5492 Part Interchanges
| Brand | Part Number |
|---|---|
| Beck/Arnley | 101-7654 |
| MOOG Chassis Products | K500207 |
| Toyota | 43330-49185 |
| MAS Industries | BJ75035, BJ75035XL |
| TRW | JBJ353 |
| N/A | MS86521 |
DELPHI TC5492 Fits Vehicles
- Toyota Prius Plug-In (2012-2015)
- Lexus CT200h (2011-2017)
- Toyota Prius (2010-2015)
