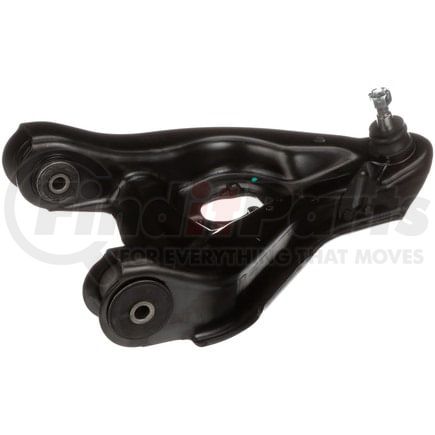

Delphi TC5435 - Control Arm and Ball Joint Assembly
$10199
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Control Arm and Ball Joint Assembly
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Right Lower |
| Pre-Greased | Yes |
| Grease Fitting Included | Yes |
| Bushings Included | Yes |
| Ball Joint Mounting Type | Press In |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Stamped |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 0 |
| Adjustable | No |
| Greasable | Yes |
| Control Arm Maximum Width | 17.717 IN |
| Control Arm Maximum Width | 450.00 MM |
| Control Arm Color | Black |
| Ball Joint Thread Diameter | 0.630 IN |
| Ball Joint Thread Diameter | 16.00 MM |
| Ball Joint Stud Length | 3.386 IN |
| Ball Joint Stud Length | 86.00 MM |
| Control Arm Maximum Length | 20.669 IN |
| Control Arm Maximum Length | 525.00 MM |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Painted |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Thread Diameter | 16.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Thread Diameter | 0.630 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | CN |
| UPC | 00689604296639 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
Part Interchanges
Fits Vehicles
- GMC Yukon (1995-1999)
- GMC Savana 3500 (1996-2002)
- GMC Savana 2500 (1996-2002)
- GMC Savana 1500 (1996-2002)
- GMC C3500 (1988-2000)
- GMC C2500 Suburban (1992-1999)
- GMC C2500 (1988-2000)
- GMC C1500 Suburban (1992-1999)
- GMC C1500 (1988-1999)
- Chevrolet Tahoe (1995-2000)
- Chevrolet Express 3500 (1996-2002)
- Chevrolet Express 2500 (1996-2002)
- Chevrolet Express 1500 (1996-2002)
- Chevrolet C3500 (1988-2000)
- Chevrolet C2500 Suburban (1992-1999)
- Chevrolet C2500 (1988-2000)
- Chevrolet C1500 Suburban (1992-1999)
- Chevrolet C1500 (1988-1999)
