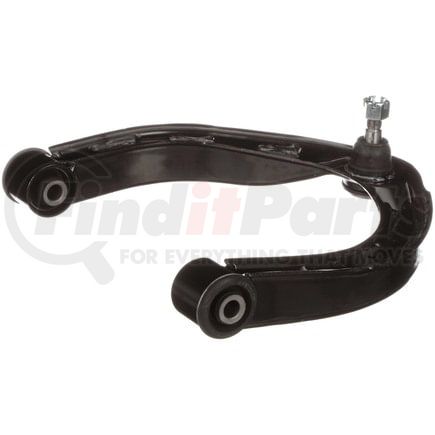

(888) 312-8812 Login SignupDELPHI TC5320 Control Arm and Ball Joint Assembly
Tap to view 20 more
$8299
Limited availability at this price!
In Stock
Get it by Thursday, Dec 18
DELPHI TC5320 Part Description
DELPHI TC5320 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Right Upper |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Mounting Type | Press In |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Stamped |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 0 |
| Adjustable | No |
| Greaseable | No |
| Control Arm Maximum Width | 12.795 IN |
| Control Arm Maximum Width | 325.00 MM |
| Control Arm Color | Black |
| Ball Joint Thread Diameter | 0.551 IN |
| Ball Joint Thread Diameter | 14.00 MM |
| Ball Joint Stud Length | 1.811 IN |
| Ball Joint Stud Length | 46.00 MM |
| Control Arm Maximum Length | 13.386 IN |
| Control Arm Maximum Length | 340.00 MM |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Painted |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Thread Diameter | 14.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Thread Diameter | 0.551 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | CN |
| UPC | 00689604296332 |
| VMRS Code | 016001002 |
| UNSPSC | 25172013 |
DELPHI TC5320 Part Interchanges
| Brand | Part Number |
|---|---|
| MOOG Chassis Products | K80994 |
| Datsun/Nissan | 54524-ZR00A, 54524ZR00B |
| Beck/Arnley | 102-6455 |
| TRW | JTC2630 |
| N/A | 54524-7S000, 101-6455, RK620649, GS30115, CB69148, 521-180, CMS30115, CK620649, JTC2635 |
DELPHI TC5320 Fits Vehicles
- Nissan TITAN XD (2016-2020)
- Nissan Pathfinder Armada (2004)
- Nissan Armada (2005-2015)
- INFINITI QX56 (2004-2010)
- Nissan TITAN (2004-2015, 2017-2022)
