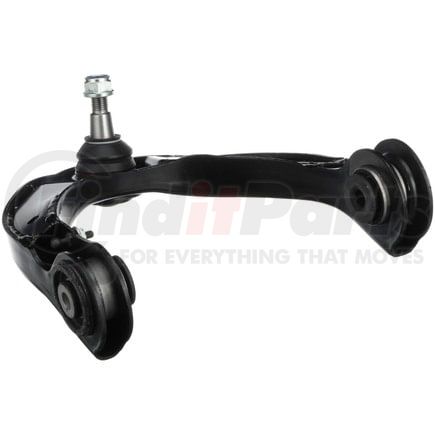

(888) 312-8812 Login SignupDELPHI TC5219 Control Arm and Ball Joint Assembly
Tap to view 20 more
$6749
Limited availability at this price!
In Stock
Get it by Thursday, Dec 18
DELPHI TC5219 Part Description
DELPHI TC5219 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Left Upper |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Mounting Type | Press In |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Stamped |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 0 |
| Adjustable | No |
| Greaseable | No |
| Control Arm Maximum Width | 10.630 IN |
| Control Arm Maximum Width | 270.00 MM |
| Control Arm Color | Black |
| Ball Joint Thread Diameter | 0.551 IN |
| Ball Joint Thread Diameter | 14.00 MM |
| Ball Joint Stud Length | 3.150 IN |
| Ball Joint Stud Length | 80.00 MM |
| Control Arm Maximum Length | 11.614 IN |
| Control Arm Maximum Length | 295.00 MM |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Painted |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Thread Diameter | 14.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Thread Diameter | 0.551 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | CN |
| UPC | 00689604295939 |
| VMRS Code | 016001002 |
| UNSPSC | 25172013 |
DELPHI TC5219 Part Interchanges
| Brand | Part Number |
|---|---|
| Chrysler | 68217809AB |
| MAS Industries | CB81247, CB81247PR |
| Dorman | 522-971 |
| MOOG Chassis Products | K500285, RK621608 |
| N/A | 68046 195AI, 68046 195AD, 68046 195AE, GS251100, CMS251100, CK621608 |
DELPHI TC5219 Fits Vehicles
- Dodge Durango (2011-2015)
- Jeep Grand Cherokee (2011-2015)
