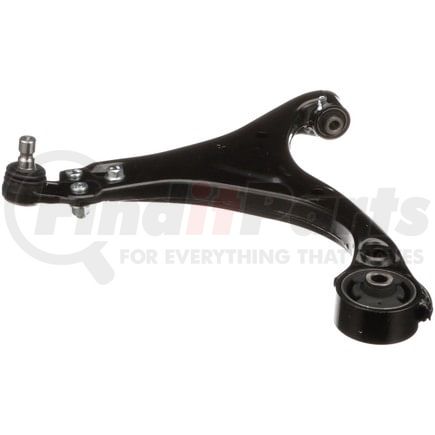

Delphi TC5208 - Control Arm and Ball Joint Assembly
$8999
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Control Arm and Ball Joint Assembly
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Right Lower |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Mounting Type | Bolt In |
| Ball Joint Stud Type | Grooved |
| Control Arm Construction | Stamped |
| Control Arm Material | Steel |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 0 |
| Adjustable | No |
| Greasable | No |
| Control Arm Maximum Width | 16.535 IN |
| Control Arm Maximum Width | 420.00 MM |
| Control Arm Color | Black |
| Ball Joint Thread Diameter | 0.71 IN |
| Ball Joint Thread Diameter | 18.0 MM |
| Ball Joint Stud Length | 2.165 IN |
| Ball Joint Stud Length | 55.00 MM |
| Control Arm Maximum Length | 19.094 IN |
| Control Arm Maximum Length | 485.00 MM |
| Bushing Material | Rubber |
| Bushing Color | Black |
| Finish | Painted |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | CN |
| UPC | 00689604296226 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
Part Interchanges
Fits Vehicles
- Hyundai Sonata (2011-2013)
