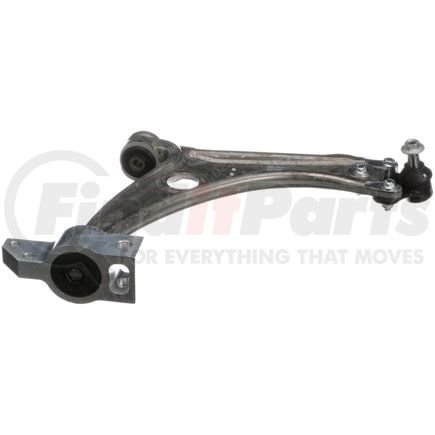

Delphi TC3712 - Control Arm and Ball Joint Assembly
$23849
5 day lead time
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Control Arm and Ball Joint Assembly
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Right Lower |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Mounting Type | Bolt In |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Aluminum |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 2 |
| Adjustable | No |
| Greasable | No |
| Control Arm Maximum Width | 3.543 IN |
| Control Arm Maximum Width | 90.00 MM |
| Control Arm Color | Gray |
| Ball Joint Thread Diameter | 0.472 IN |
| Ball Joint Thread Diameter | 12.00 MM |
| Ball Joint Stud Length | 0.906 IN |
| Ball Joint Stud Length | 23.00 MM |
| Control Arm Maximum Length | 14.173 IN |
| Control Arm Maximum Length | 360.00 MM |
| Bushing Material | Rubber |
| Mounting Hole Diameter | 0.276 IN |
| Mounting Hole Diameter | 7.00 MM |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Uncoated |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Thread Diameter | 12.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Thread Diameter | 0.472 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604298794 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
Fits Vehicles
- Audi TTS Quattro (2009-2015)
- Audi TT RS Quattro (2012-2013)
- Audi TT Quattro (2008-2015)
- Audi TT (2008-2009)
