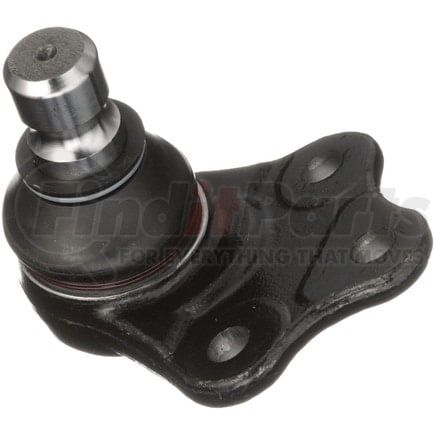

(888) 312-8812 Login SignupDELPHI TC3670 Ball Joint
Tap to view 8 more
$3499
Limited availability at this price!
In Stock
Get it by Thursday, Dec 18
DELPHI TC3670 Part Description
DELPHI TC3670 Specifications
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Lower |
| Material | Steel |
| Maximum Outside Diameter | 1.929 IN |
| Maximum Outside Diameter | 49.00 MM |
| Color | Gray |
| Stud Thread Diameter | 0.472 IN |
| Stud Thread Diameter | 12 MM |
| Castle Nut Included | Yes |
| Grease Fitting Included | No |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 49 MM |
| Cotter Pin Included | Yes |
| Cotter Pin Hole | Yes |
| Mounting Hardware Included | Yes |
| Height | 4.138 IN |
| Height | 105.10 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 0 |
| Adjustable | No |
| Greaseable | No |
| Stud Thread Length | 0.984 IN |
| Stud Thread Length | 25 MM |
| Stud Type | Threaded |
| Mounting Type | Press-In |
| Dust Boot Material | Rubber |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Tapered End 2 Diameter | 0.713 IN |
| Stud Tapered End 2 Diameter | 18.1 MM |
| Stud Tapered End 1 Diameter | 0.571 IN |
| Stud Tapered End 1 Diameter | 14.5 MM |
| Stud Thread Pitch | 1.5 MM |
| Length | 49.00 MM |
| Length | 1.930 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| UPC | 00689604297209 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DELPHI TC3670 Part Interchanges
| Brand | Part Number |
|---|---|
| Volvo | 30683248 |
| N/A | 30683249-0, 31202228-0, 30683249, 31202228, 31202229, 31277345, 31277346, MS10505, JBJ720, 523-120, GS10505 |
DELPHI TC3670 Fits Vehicles
- Volvo XC70 (2008-2015)
