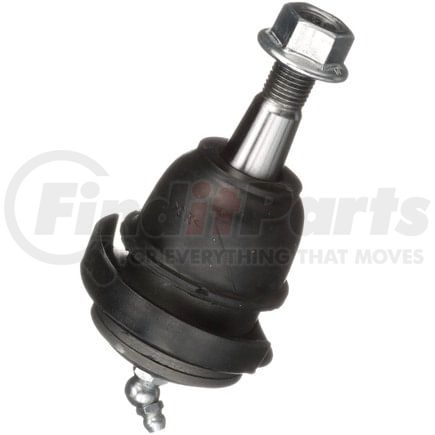

Delphi TC3645 - Ball Joint
$3649
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Ball Joint
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Lower |
| Material | Steel |
| Maximum Outside Diameter | 1.850 IN |
| Maximum Outside Diameter | 47.00 MM |
| Color | Gray |
| Stud Thread Diameter | 12 MM |
| Castle Nut Included | No |
| Grease Fitting Included | Yes |
| Suspension Grade Type | Standard |
| Bushings Included | No |
| Dust Boot Included | Yes |
| Ball Joint Assembly | Yes |
| Width | 47 MM |
| Cotter Pin Included | No |
| Cotter Pin Hole | No |
| Mounting Hardware Included | Yes |
| Washers Included | Yes |
| Height | 4.567 IN |
| Nuts Included | Yes |
| Adjustable | No |
| Greasable | Yes |
| 4966 | 0.945 IN |
| Stud Type | Threaded |
| Mounting Type | Press-In |
| Dust Boot Material | Rubber |
| Mounting Bolts Included | No |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| Stud Taper Per Foot | 0.167 IN |
| 9212 | 0.531 IN |
| Stud Tapered End 2 Diameter | 13.5 MM |
| 9213 | 0.709 IN |
| Stud Tapered End 1 Diameter | 18 MM |
| Stud Thread Pitch | 1.25 MM |
| Length | 116.00 MM |
| Length | 4.570 IN |
| Stud Thread Diameter | 0.47 IN |
| Height | 116.00 MM |
| Stud Thread Length | 24 MM |
Additional Information
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| UPC | 00689604296998 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
Part Interchanges
Fits Vehicles
- Dodge Grand Caravan (2001-2007)
- Dodge Caravan (2001-2007)
- Chrysler Voyager (2001-2003)
- Chrysler Town & Country (2001-2007)
