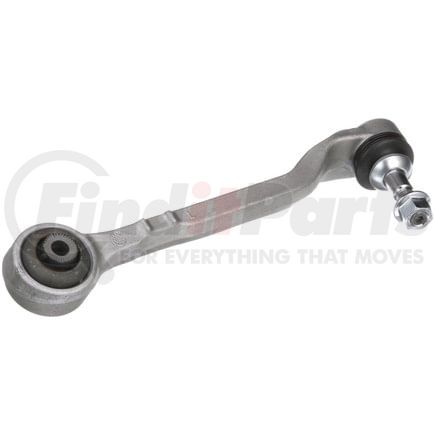

Delphi TC3578 - Control Arm and Ball Joint Assembly
$9449
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Control Arm and Ball Joint Assembly
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Left Lower Rearward |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Bushings Included | Yes |
| Ball Joint Mounting Type | Machined |
| Ball Joint Stud Type | Threaded |
| Control Arm Construction | Casting/Forged |
| Control Arm Material | Aluminum |
| Mounting Hardware Included | Yes |
| Mounting Hole Quantity | 1 |
| Adjustable | No |
| Greasable | No |
| Control Arm Maximum Width | 4.370 IN |
| Control Arm Maximum Width | 111.00 MM |
| Control Arm Color | Gray |
| Ball Joint Thread Diameter | 14.00 MM |
| Ball Joint Stud Length | 80.00 MM |
| Control Arm Maximum Length | 13.622 IN |
| Control Arm Maximum Length | 346.00 MM |
| Mounting Hole Diameter | 12.20 MM |
| Bushing Material | Rubber |
| Thread Direction | Clockwise (Right) |
| Bushing Color | Black |
| Finish | Uncoated |
| Dust Boot Included | Yes |
| Ball Joint Included | Yes |
| Grade Type | Premium |
| Boot Material | Chloroprene Rubber (CR) |
| Locking Nut Included | Yes |
| Thread Diameter | 14.00 MM |
| Boot Color | Black |
| Steering Type | Power |
| Bearing Material | Plastic |
| Dust Boot Material | Chloroprene Rubber (CR) |
| Ball Joint Thread Diameter | 0.551 IN |
| Ball Joint Stud Length | 3.150 IN |
| Thread Diameter | 0.551 IN |
| Mounting Hole Diameter | 0.480 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| UPC | 00689604299920 |
| VMRS Code | 016001001 |
| UNSPSC | 25172013 |
Part Interchanges
Fits Vehicles
- BMW 430i xDrive (2017-2020)
- BMW 440i xDrive Gran Coupe (2017-2020)
- BMW 430i xDrive Gran Coupe (2017-2020)
- BMW 440i xDrive (2017-2020)
- BMW 330i xDrive (2017-2019)
- BMW 230i xDrive (2017-2020)
- BMW 330i GT xDrive (2017-2019)
- BMW 340i GT xDrive (2017-2019)
- BMW M240i xDrive (2017-2020)
- BMW 340i xDrive (2016-2018)
- BMW 228i xDrive (2015-2016)
- BMW M235i xDrive (2015-2016)
- BMW 428i xDrive Gran Coupe (2015-2016)
- BMW 435i xDrive Gran Coupe (2015-2016)
- BMW 328d xDrive (2014-2018)
- BMW 335i GT xDrive (2014-2016)
- BMW 328i GT xDrive (2014-2016)
- BMW 435i xDrive (2014-2016)
- BMW 428i xDrive (2014-2016)
- BMW 320i xDrive (2013-2018)
- BMW 328i xDrive (2013-2016)
- BMW 335i xDrive (2013-2015)
