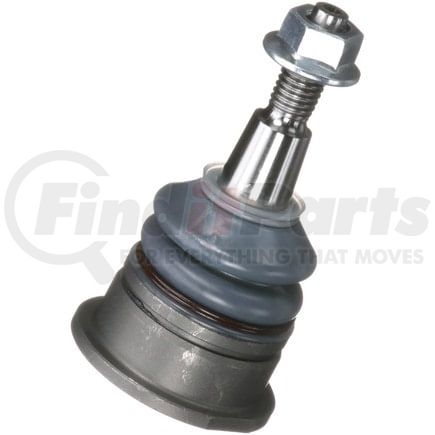

Delphi TC1865 - Ball Joint
$4549
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Ball Joint
Product Attributes
| Item Grade | Standard Replacement |
| Position(s) | Front Upper |
| Material | Steel |
| Maximum Outside Diameter | 1.772 IN |
| Maximum Outside Diameter | 45.00 MM |
| Color | Black |
| Stud Thread Diameter | 0.551 IN |
| Stud Thread Diameter | 14 MM |
| Castle Nut Included | Yes |
| Grease Fitting Included | No |
| Bushings Included | No |
| Dust Boot Included | No |
| Ball Joint Assembly | Yes |
| Width | 89 MM |
| Cotter Pin Included | Yes |
| Cotter Pin Hole | Yes |
| Mounting Hardware Included | Yes |
| 3068 | 1.094 IN |
| Mounting Bolt Length | 27.80 MM |
| Washers Included | No |
| Height | 3.618 IN |
| Height | 91.90 MM |
| Nuts Included | Yes |
| Mounting Hole Quantity | 3 |
| Adjustable | No |
| Greasable | Yes |
| 4966 | 0.736 IN |
| Stud Thread Length | 18.7 MM |
| 839 | 19mm |
| Stud Type | Threaded |
| Mounting Type | Bolt-In |
| Distance Between Mounting Holes | 60.00 MM |
| Dust Boot Material | Rubber |
| 9202 | 0.472 IN |
| Mounting Bolt Shank Diameter | 12.00 MM |
| 9203 | 0.866 IN |
| Mounting Bolt Head Diameter | 22.00 MM |
| Mounting Bolts Included | Yes |
| Mounting Bolt Thread Pitch | 1.25 MM |
| 9207 | 0.787 IN |
| Mounting Bolt Thread Length | 20.00 MM |
| Mounting Bolt Thread Diameter | 12.00 MM |
| Mount Plate Included | No |
| Tapered Stud | Yes |
| 9212 | 0.827 IN |
| Stud Tapered End 2 Diameter | 21 MM |
| 9213 | 0.689 IN |
| Stud Tapered End 1 Diameter | 17.5 MM |
| Stud Thread Pitch | 1.5 MM |
| Length | 117.00 MM |
| Length | 4.610 IN |
| Mounting Bolt Thread Diameter | 0.470 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708806590 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604299487 |
| VMRS Code | 016001014 |
| UNSPSC | 25174203 |
Part Interchanges
Fits Vehicles
- GMC Sierra 1500 Classic (2007)
- Chevrolet Silverado 1500 Classic (2007)
- Cadillac Escalade EXT (2002-2006)
- Cadillac Escalade ESV (2003-2006)
- GMC Yukon XL 1500 (2000-2006)
- GMC Yukon (2000-2006)
- GMC Sierra 1500 (1999-2006)
- GMC Savana 2500 (2003-2005)
- GMC Savana 1500 (2003-2008)
- Chevrolet Tahoe (2000-2006)
- Chevrolet Suburban 1500 (2000-2006)
- Chevrolet Silverado 1500 (1999-2006)
- Chevrolet Express 2500 (2003-2005)
- Chevrolet Express 1500 (2003-2008)
- Chevrolet Avalanche 1500 (2002-2006)
- Cadillac Escalade (2002-2006)
