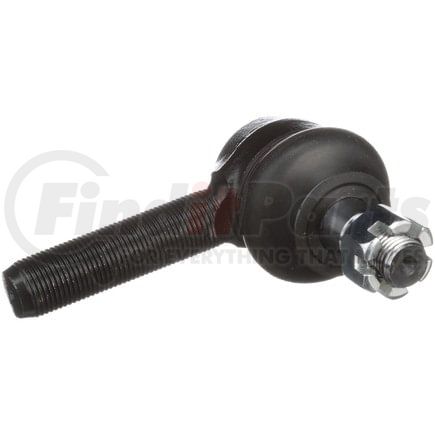

Delphi TA5524 - Tie Rod End
$2449
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Tie Rod End
Product Attributes
| Position(s) | Right, Right Outer. For the position specific to your vehicle, refer to the Applications. |
| Item Grade | Standard Replacement |
| Length | 108.00 MM |
| Color | Black |
| End 1 Gender | Male |
| End 2 Gender | Male |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Dust Boot Included | Yes |
| Width | 41 MM |
| Type | Straight |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 0.563 IN |
| Height | 93.00 MM |
| Housing Material | Steel |
| Adjustable | No |
| Greasable | No |
| Weight | 1.01 lb |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Grade | Premium |
| Stud Type | Threaded |
| Length Stud Center to End | 3.445 IN |
| Length Stud Center to End | 87.50 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 2 Threads Per Inch | 18 |
| End 1 Threads Per Inch | 18 |
| End 1 Thread Diameter | 0.688 IN |
| End 2 Thread Diameter | 14.30 MM |
| Grade Type | Standard |
| End 1 Thread Diameter | 17.48 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708948000 |
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (HTS) | 8708947550 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| UPC | 00689604313640 |
| VMRS Code | 015004019 |
| UNSPSC | 25174205 |
Part Interchanges
Fits Vehicles
- International M700 (1966-1967)
- International CM110 (1963-1965)
- International CM80 (1963-1965)
- International CM75 (1963-1965)
- International 900A (1966-1967)
- International 908B (1967)
- International 1200A (1966)
- International 1300B (1967)
- International 1100B (1967)
- International 1300A (1966)
- International 1100A (1966)
- International C1100 (1963-1964)
- International C1200 (1963-1964)
- International C900 (1964)
- International C1300 (1963)
- International C132 (1961-1962)
- International C122 (1961-1962)
- International C110 (1961-1962)
- International C120 (1961-1962)
- International C130 (1961-1962)
- International C112 (1961-1962)
- International A120 (1957-1958)
- International B130 (1959-1960)
- International B120 (1959-1960)
- International B110 (1959-1960)
- International B132 (1959-1960)
- International B122 (1959-1960)
- International B112 (1959-1960)
- International B102 (1959-1960)
- International B100 (1959-1960)
- International AM132 (1958)
- International AM80 (1957-1958, 1961)
- International A130 (1957-1958)
- International A112 (1957-1958)
- International A102 (1957-1958)
- International A132 (1957-1958)
- International A122 (1957-1958)
- International A110 (1957-1958)
- International A100 Truck (1957-1958)
- International S100 (1956-1957)
- International S110 (1956-1957)
- International M800 Navy (1969)
- International M800 Post Office (1969-1972)
- International MA1200 (1967-1971)
- International M800 (1968-1971)
- International M1200 (1965-1972)
- International M1100 (1965-1972)
- International M Series Van (1961-1964)
- International 908C (1968-1969)
- International 1200C (1968)
- International 1300C (1968)
- International 1100C (1968)
- Studebaker 8E12 (1963-1964)
- Studebaker 8E13 (1963-1964)
- Studebaker 8E12D (1963-1964)
- Studebaker 7E13D (1962)
- Studebaker 7E7 (1962)
- Studebaker 7E13 (1962)
- Studebaker 6E7D (1961)
- Studebaker 6E13D (1961)
- Studebaker 6E12 (1961)
- Studebaker 6E7 (1961)
- Studebaker 6E13 (1961)
- Studebaker 6E12D (1961)
- Studebaker 5E13 (1960)
- Studebaker 5E12D (1960)
- Studebaker 4E14 (1959)
- Studebaker 5E13D (1960)
- Studebaker 5E12 (1960)
- Studebaker 5E7 (1960)
- Studebaker 4E7 (1959)
- Studebaker 4E7D (1959)
- Studebaker 5E7D (1960)
- Studebaker 4E2 (1959)
- Studebaker 4E12D (1959)
- Studebaker 3E7 (1958)
- Studebaker 4E13 (1959)
- Studebaker 3E7D (1958)
- Studebaker 4E12 (1959)
- Studebaker 4E2D (1959)
- Studebaker 3E12D (1958)
- Studebaker 3E11 (1958)
- Studebaker 3E13 (1958)
- Studebaker 3E11D (1958)
- Studebaker 3E14 (1958)
- Studebaker 3E12 (1958)
- Studebaker E16 (1956)
- Studebaker E17 (1956)
- Studebaker E11 (1955-1956)
- Studebaker E6 (1955-1956)
- Studebaker E13 (1955-1956)
- Studebaker E14 (1955-1956)
- Studebaker 3R11 (1954)
- Studebaker 3R6 (1954)
- Studebaker 3R10 (1954)
- Studebaker E7 (1955)
- Studebaker 2R6 (1950-1953)
- Studebaker E5 (1955)
- Studebaker 2R5 (1949-1953)
- Studebaker 2R10 (1949-1953)
- Studebaker 2R11 (1950-1953)
- Studebaker 3R5 (1954)
- Studebaker Deluxe (1959)
- Studebaker E10 (1955)
- Studebaker Scotsman (1958-1959)
- Studebaker Transtar (1956-1958)
- Studebaker Champ (1960-1964)
- Studebaker E12 (1955)
- Studebaker M5 (1941-1948)
