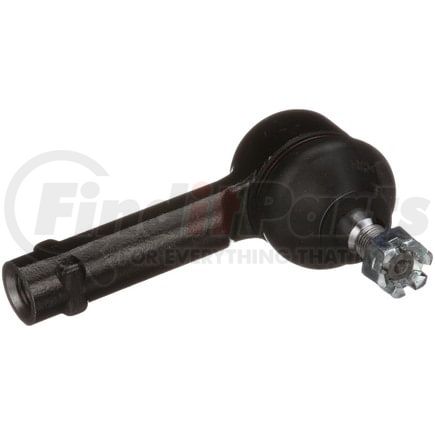

(888) 312-8812 Login SignupDELPHI TA5507 Tie Rod End
Tap to view 5 more
$4849
Limited availability at this price!
In Stock
Get it by Tuesday, Dec 30
DELPHI TA5507 Part Description
DELPHI TA5507 Specifications
Product Attributes
| Position(s) | Outer |
| Item Grade | Standard Replacement |
| Length | 125.00 MM |
| Color | Black |
| End 2 Gender | Female |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Dust Boot Included | Yes |
| Width | 42.5 MM |
| Type | Straight |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 0.551 IN |
| End 2 Thread Diameter | 14.00 MM |
| Height | 79.10 MM |
| Housing Material | Steel |
| Tube Diameter | 0.827 IN |
| Tube Diameter | 21.00 MM |
| Adjustable | No |
| Greaseable | No |
| Weight | 0.9 lb |
| Cone Outside Diameter | 16.00 MM |
| Bearing Material | Plastic |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Stud Type | Threaded |
| End 2 Thread Pitch | 1.5 MM |
| Length - Stud Center to End | 4.055 IN |
| Length - Stud Center to End | 103.00 MM |
| Dust Boot Material | Rubber |
| Tie Rod Material | Steel |
| End 1 Thread Diameter | 0.472 IN |
| End 1 Thread Diameter | 12.00 MM |
| Shank Length | 16.00 MM |
| Stud Length | 16.00 MM |
| Grade Type | Standard |
| Grade | Premium |
| Shank Length | 0.630 IN |
| Stud Length | 0.630 IN |
| Cone Outside Diameter | 0.630 IN |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708948000 |
| Harmonized Tariff Code (HTS) | 8708947550 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604311912 |
| VMRS Code | 015004045 |
| UNSPSC | 25174205 |
DELPHI TA5507 Part Interchanges
| Brand | Part Number |
|---|---|
| Beck/Arnley | 101-6732 |
| MOOG Chassis Products | ES800984 |
| Hyundai | 56820-2M010 |
| TRW | JTE1905 |
| N/A | 56820-2M000, MS90625, TO60395PR, TO60395 |
DELPHI TA5507 Fits Vehicles
- Hyundai Genesis Coupe (2010-2016)
