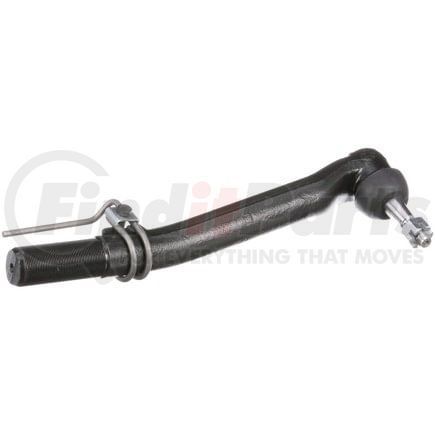

Name: Delphi TA5452 Tie Rod End
SKU: ta5452
Price: 80.49 USD
Availability: InStock

DELPHI part description

Product Description

Tie Rod End

Product Attributes

Position(s)	Left Outer
Item Grade	Standard Replacement
Length	402.00 MM
Color	Gray
End 1 Gender	Male
End 2 Gender	Male
Pre-Greased	Yes
Grease Fitting Included	Yes
Dust Boot Included	Yes
Width	91.5 MM
Type	Bent
Mounting Hardware Included	Yes
End 2 Thread Diameter	1.744 IN
End 2 Thread Diameter	44.31 MM
Height	136.20 MM
Housing Material	Steel
36	1.516 IN
Tube Diameter	38.50 MM
Adjustable	No
Greasable	Yes
Weight	8.81 lb
Cone Outside Diameter	21.50 MM
Bearing Material	Plastic
End 1 Thread Direction	Clockwise (Right)
End 2 Thread Direction	Clockwise (Right)
Stud Type	Threaded
Length Stud Center to End	14.646 IN
Length Stud Center to End	372.00 MM
Dust Boot Material	Rubber
Tie Rod Material	Steel
End 2 Threads Per Inch	16
End 1 Thread Diameter	0.551 IN
End 1 Thread Diameter	14.00 MM
Shank Length	21.50 MM
Stud Length	21.50 MM
Grade Type	Standard
Grade	Premium
Shank Length	0.846 IN
Stud Length	0.846 IN
662	0.846 IN

Additional Information

Harmonized Tariff Code (Schedule B)	8708998175
Country of Origin (Primary)	TR
Harmonized Tariff Code (HTS)	8708998180
Warranty Special	Limited Lifetime
Warranty Special UOM	LF
UPC	00689604302248
VMRS Code	015004020
UNSPSC	25174205

Part Interchanges

Fits Vehicles

Ford F-250 Super Duty (2005-2022)
Ford F-350 Super Duty (2005-2022)
Ford F-450 Super Duty (2005-2010)
Ford F-550 Super Duty (2005-2010)
