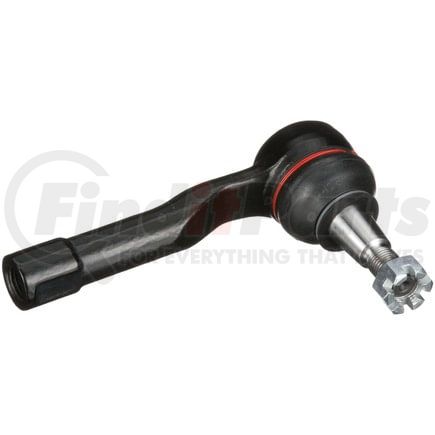

Name: Delphi TA5425 Tie Rod End
SKU: ta5425
Price: 30.99 USD
Availability: InStock

DELPHI part description

Product Description

Tie Rod End

Product Attributes

Position(s)	Right Outer
Item Grade	Standard Replacement
Length	154.90 MM
Color	Black
End 1 Gender	Male
End 2 Gender	Female
Pre-Greased	Yes
Grease Fitting Included	No
Dust Boot Included	No
Width	50 MM
Type	Straight
Mounting Hardware Included	Yes
End 2 Thread Diameter	0.551 IN
End 2 Thread Diameter	14.00 MM
Height	95.00 MM
Housing Material	Steel
Adjustable	No
Greasable	No
Weight	1.06 lb
662	0.551 IN
Cone Outside Diameter	14.00 MM
Bearing Material	Plastic
End 1 Thread Direction	Clockwise (Right)
End 2 Thread Direction	Clockwise (Right)
Grade	Premium
Stud Type	Threaded
End 2 Thread Pitch	1.5 MM
End 1 Thread Pitch	1.25 MM
Length Stud Center to End	1.929 IN
Length Stud Center to End	49.00 MM
Tie Rod Material	Steel
End 1 Thread Diameter	0.472 IN
End 1 Thread Diameter	12.00 MM
Shank Length	14.00 MM
Stud Length	14.00 MM
Grade Type	Standard
Boot Color	Black
Shank Length	0.551 IN
Stud Length	0.551 IN

Additional Information

Harmonized Tariff Code (Schedule B)	8708998175
Harmonized Tariff Code (HTS)	8708998180
Warranty Special	Limited Lifetime
Warranty Special UOM	LF
Country of Origin (Primary)	CN
UPC	00689604300480
VMRS Code	015004019
UNSPSC	25174205

Part Interchanges

Fits Vehicles

INFINITI Q45 (1990-1996)
Nissan 300ZX (1989-1996)
