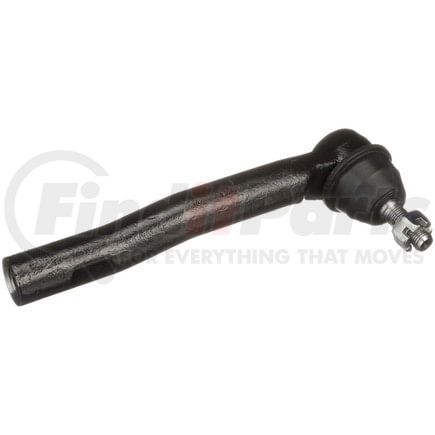

Name: Delphi TA5400 Tie Rod End
SKU: ta5400
Price: 35.99 USD
Availability: InStock

DELPHI part description

Product Description

Tie Rod End

Product Attributes

Position(s)	Left Outer
Item Grade	Standard Replacement
Length	217.00 MM
Color	Black
End 2 Gender	Female
Pre-Greased	Yes
Grease Fitting Included	No
Dust Boot Included	Yes
Width	45 MM
Type	Bent
Mounting Hardware Included	Yes
End 2 Thread Diameter	0.630 IN
End 2 Thread Diameter	16.00 MM
Height	92.00 MM
Housing Material	Steel
36	1.004 IN
Tube Diameter	25.50 MM
Adjustable	No
Greasable	No
Weight	2.15 lb
Cone Outside Diameter	16.20 MM
Bearing Material	Plastic
End 1 Thread Direction	Clockwise (Right)
End 2 Thread Direction	Clockwise (Right)
Stud Type	Threaded
End 2 Thread Pitch	1.5 MM
Length Stud Center to End	7.677 IN
Length Stud Center to End	195.00 MM
Dust Boot Material	Rubber
Tie Rod Material	Steel
End 1 Thread Diameter	0.472 IN
End 1 Thread Diameter	12.00 MM
Shank Length	16.20 MM
Stud Length	16.20 MM
Grade Type	Standard
Grade	Premium
Shank Length	0.638 IN
Stud Length	0.638 IN
662	0.638 IN

Additional Information

Harmonized Tariff Code (Schedule B)	8708998175
Country of Origin (Primary)	TR
Harmonized Tariff Code (HTS)	8708998180
Warranty Special	Limited Lifetime
Warranty Special UOM	LF
UPC	00689604298893
VMRS Code	015004020
UNSPSC	25174205

Part Interchanges

Fits Vehicles

Toyota Venza (2009-2016)
Lexus RX450h (2010-2015)
Lexus RX350 (2010-2015)
Toyota Highlander (2008-2019)
