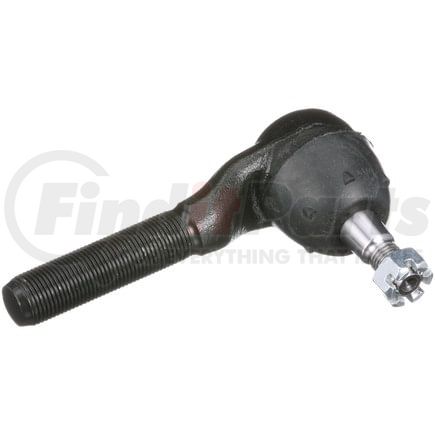

Name: Delphi TA5308 Tie Rod End
SKU: ta5308
Price: 23.99 USD
Availability: InStock

DELPHI part description

Product Description

Tie Rod End

Product Attributes

Position(s)	Outer
Item Grade	Standard Replacement
Length	134.00 MM
Color	Black
End 1 Gender	Male
End 2 Gender	Male
Pre-Greased	Yes
Grease Fitting Included	Yes
Dust Boot Included	Yes
Width	40 MM
Type	Bent
Mounting Hardware Included	Yes
End 2 Thread Diameter	0.687 IN
End 2 Thread Diameter	17.46 MM
Height	83.90 MM
Housing Material	Steel
36	0.688 IN
Tube Diameter	17.46 MM
Adjustable	No
Greasable	Yes
Weight	1.01 lb
Cone Outside Diameter	14.20 MM
Bearing Material	Plastic
End 1 Thread Direction	Clockwise (Right)
End 2 Thread Direction	Clockwise (Right)
Stud Type	Threaded
Length Stud Center to End	4.449 IN
Length Stud Center to End	113.00 MM
Dust Boot Material	Rubber
Tie Rod Material	Steel
End 2 Threads Per Inch	16
End 1 Threads Per Inch	16
End 1 Thread Diameter	0.437 IN
End 1 Thread Diameter	11.11 MM
Shank Length	14.20 MM
Stud Length	14.20 MM
Grade Type	Standard
Grade	Premium
Shank Length	0.559 IN
Stud Length	0.559 IN
662	0.559 IN

Additional Information

Harmonized Tariff Code (Schedule B)	8708998175
Country of Origin (Primary)	TR
Harmonized Tariff Code (HTS)	8708947550
Warranty Special	Limited Lifetime
Warranty Special UOM	LF
UPC	00689604301517
VMRS Code	015004045
UNSPSC	25174205

Part Interchanges

Fits Vehicles

Mercury Montego (1968-1969)
Mercury Cyclone (1967-1969)
Mercury Cougar (1967-1969)
Mercury Comet (1967-1969)
Ford Torino (1968-1969)
Ford Ranchero (1967-1969)
Ford Mustang (1967-1968)
Ford Falcon (1967-1969)
Ford Fairlane (1967-1969)
