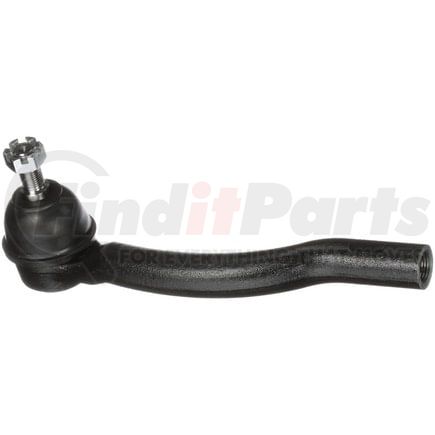

Delphi TA5013 - Steering Tie Rod End - LH, Outer, Adjustable, Steel, Non-Greaseable
$3699
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
DELPHI part description
Product Description
Tie Rod End
Product Attributes
| Position(s) | Left Outer |
| Item Grade | Standard Replacement |
| Length | 228.0 MM |
| Color | Black |
| End 1 Gender | Female |
| End 2 Gender | Male |
| Pre-Greased | Yes |
| Grease Fitting Included | No |
| Dust Boot Included | Yes |
| Width | 55.0 MM |
| Type | Bent |
| Mounting Hardware Included | Yes |
| End 2 Thread Diameter | 0.472 IN |
| End 2 Thread Diameter | 12.0 MM |
| Height | 83.0 MM |
| Grade Type | Standard |
| Housing Material | Steel |
| Adjustable | Yes |
| Greasable | No |
| Weight | 1.93 lb |
| Cone Outside Diameter | 17.5 MM |
| Bearing Material | Polyoxymethilen (POM) |
| End 1 Thread Direction | Clockwise (Right) |
| End 2 Thread Direction | Clockwise (Right) |
| Grade | Standard |
| Stud Type | Threaded |
| End 2 Thread Pitch | 1.25 MM |
| Length Stud Center to End | 8.11 IN |
| Length Stud Center to End | 206.0 MM |
| Dust Boot Material | Choloroprene Rubber (CR) |
| Tie Rod Material | Steel |
| End 1 Thread Diameter | 0.63 IN |
| End 1 Thread Diameter | 16.0 MM |
Additional Information
| Harmonized Tariff Code (Schedule B) | 8708998175 |
| Harmonized Tariff Code (HTS) | 8708998180 |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | LF |
| Country of Origin (Primary) | TR |
| UPC | 00689604288580 |
| VMRS Code | 015004020 |
| UNSPSC | 25174205 |
Part Interchanges
Fits Vehicles
- Lincoln MKX (2007-2015)
- Ford Edge (2007-2015)
