STANDARD IGNITION S1932 Part Description
Manufacturer
Product Description

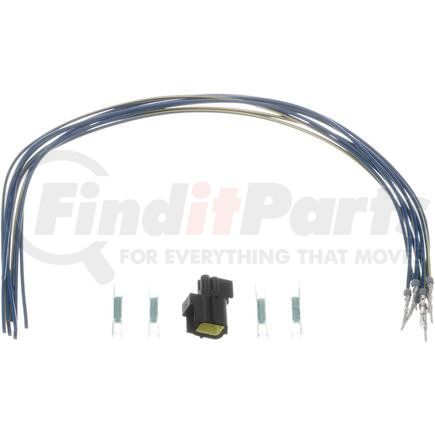

Multi Function Connector
Features & Benefits
- Protective Tubing Included
- Each part has high-quality direct replacement electrical connector that eliminates the need for a harness, replacing only the damaged connector, for a cost effective repair solution
- The terminals are manufactured with high grade materials such as copper alloy, brass, and phosphor bronze.
- The Housing is fabricated using polyamide resins. All of the materials together provide the connectors with prolonged life and superior performance in harsh environments.
- All electrical connectors are 100% tested for proper mechanical and electrical fit, form and function.
- Offering thousands of high-quality pigtails and sockets for nearly every electrical job.
STANDARD IGNITION S1932 Specifications
Product Attributes
| Attachment Method | Push On |
| Bend Angle (Deg.) | 0 |
| Connector Gender | Female |
| Connector Quantity | 1 |
| Connector Shape | Square |
| Contact Terminal Material | Metal |
| Contents | Includes Dashpots |
| Dust Shield Included | No |
| Length - Inches | 1.375 |
| Material | Plastic |
| Number Of Splice Connectors Includ | 4 |
| Number of Wires | 4 |
| Splice Connectors Included | Yes |
| Terminal Gender | Male |
| Terminal Quantity | 4 |
| Terminal Type | Blade |
| Water Resistant | No |
| Weatherproof Sealed | Yes |
| Wire Gauge (ga) | 16, 18 |
| Wire Quantity | 4 |
| Wiring Harness Included | Yes |
| Wiring Harness Length (in) | 20.25 |
| Wiring Harness Length (mm) | 514.35 |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 8536908585 |
| Warranty Distance | 36000 |
| Warranty Distance UOM | MI |
| Warranty Time | 36 |
| Warranty Time UOM | MO |
| UPC | 00033086477206 |
STANDARD IGNITION S1932 Part Interchanges
| Brand | Part Number |
|---|---|
| Echlin | EC1430 |
| BWD | PT1431 |
| Chrysler | 5161922AA, 5161922AB |
| N/A | 1P4135, PTC2877, CONB11154 |
STANDARD IGNITION S1932 Fits Vehicles
- Jeep Patriot (2007-2010)
- Jeep Compass (2007-2010)
- Dodge Caliber (2007-2010)
- Ram Dakota (2011)
- Ram 1500 (2011-2012)
- Dodge Challenger (2008-2012)
- Dodge Journey (2009-2010)
- Dodge Avenger (2008-2010)
- Dodge Nitro (2007-2011)
- Chrysler Aspen (2007-2009)
- Chrysler Town & Country (2004-2010)
- Mitsubishi Raider (2006-2009)
- Jeep Commander (2006-2010)
- Dodge Charger (2006-2012)
- Dodge Caravan (2005-2007)
- Dodge Magnum (2005-2008)
- Chrysler Pacifica (2004-2008)
- Chrysler 300 (2005-2012)
- Chrysler Sebring (2004-2010)
- Dodge Stratus (2004-2006)
- Dodge Grand Caravan (2004-2010)
- Honda Civic (2003)
- Jeep Liberty (2002-2012)
- Jeep Wrangler (2001-2010)
- Jeep Grand Cherokee (2001-2006, 2010)
- Dodge Viper (2003-2006, 2008-2010)
- Dodge Ram 3500 Van (2001-2003)
- Dodge Ram 3500 (2001-2006)
- Dodge Ram 1500 (2001-2010)
- Dodge Ram 2500 Van (2001-2003)
- Dodge Ram 2500 (2001-2006)
- Dodge Ram 1500 Van (2001-2003)
- Dodge Neon (2003-2005)
- Dodge Durango (2001-2009)
- Dodge Dakota (2001-2010)
- Chrysler PT Cruiser (2003-2010)
