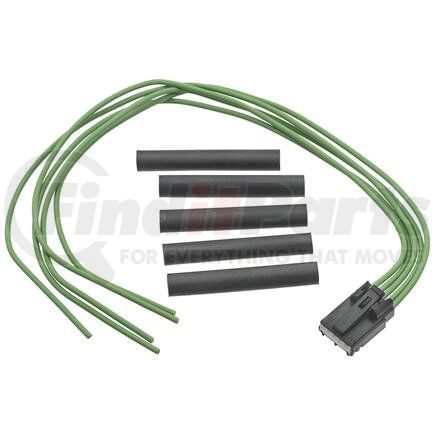

(888) 312-8812 Login SignupSTANDARD IGNITION S2420 Multi Function Connector
Tap to view 3 more
$7049
Limited availability at this price!
In Stock
Get it by Friday, Jan 2
STANDARD IGNITION S2420 Part Description
Manufacturer
Product Description
Multi Function Connector
Features & Benefits
- Each part has high-quality direct replacement electrical connector that eliminates the need for a harness, replacing only the damaged connector, for a cost effective repair solution
- The terminals are manufactured with high grade materials such as copper alloy, brass, and phosphor bronze.
- The Housing is fabricated using polyamide resins. All of the materials together provide the connectors with prolonged life and superior performance in harsh environments.
- All electrical connectors are 100% tested for proper mechanical and electrical fit, form and function.
- Offering thousands of high-quality pigtails and sockets for nearly every electrical job.
STANDARD IGNITION S2420 Specifications
Product Attributes
| Attachment Method | Push On |
| Bend Angle (Deg.) | 0 |
| Connector Gender | Male |
| Connector Quantity | 1 |
| Connector Shape | Rectangle |
| Contact Terminal Material | Metal |
| Dust Shield Included | No |
| Length - Inches | 0.75 |
| Material | Plastic |
| Number Of Splice Connectors Includ | 5 |
| Number of Wires | 5 |
| Splice Connectors Included | Yes |
| Terminal Gender | Female |
| Terminal Quantity | 5 |
| Terminal Type | Blade |
| Water Resistant | No |
| Weatherproof Sealed | Yes |
| Wire Gauge (ga) | 18 |
| Wire Quantity | 5 |
| Wiring Harness Included | Yes |
| Wiring Harness Length (in) | 11 |
| Wiring Harness Length (mm) | 279.4 |
Additional Information
| Country of Origin (Primary) | US |
| Harmonized Tariff Code (HTS) | 8536908085 |
| Warranty Distance | 36000 |
| Warranty Distance UOM | MI |
| Warranty Time | 36 |
| Warranty Time UOM | MO |
| UPC | 00033086495361 |
STANDARD IGNITION S2420 Part Interchanges
| Brand | Part Number |
|---|---|
| Echlin | EC2321 |
| Motorcraft | WPT983 |
| BWD | PT2405 |
| Ford | 6U2Z14S411SB |
| Airtex | 1P2512 |
| Carquest Premium Vehicle Solutions | PTA2892 |
| N/A | CONA323 |
STANDARD IGNITION S2420 Fits Vehicles
- Lincoln Continental (2017)
- Lincoln MKC (2015-2017)
- Ford Expedition (2015-2017)
- Ford Transit-150 (2015-2018)
- Ford Transit-350 (2015-2018)
- Lincoln MKZ (2013-2017)
- Lincoln Mark LT (2011-2014)
- Ford Edge (2011-2018)
- Ford Fusion (2013-2018)
- Lincoln MKX (2011-2016)
- Ford Explorer (2011-2018)
- Ford F-150 (2011-2018)
- Ford Transit Connect (2010-2018)
- Ford F-250 Super Duty (2011-2018)
- Ford F-450 Super Duty (2011-2018)
- Ford F-350 Super Duty (2011-2018)
- Lincoln MKT (2010-2018)
- Lincoln MKS (2010-2015)
- Ford Mustang (2005-2018)
