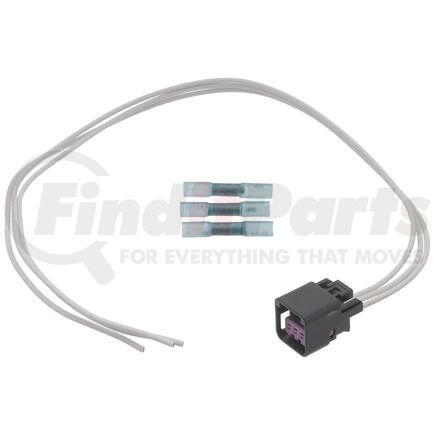

Standard Ignition S2374 - Multi Function Connector
- Part Number
- S2374
- Manufacturer
- STANDARD IGNITION
- Description
-
Multi Function Connector
details
$2649
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
STANDARD IGNITION part description
Product Description
Multi Function Connector
Features & Benefits
- Heat shrink butt connectors included
- Each part has high-quality direct replacement electrical connector that eliminates the need for a harness, replacing only the damaged connector, for a cost effective repair solution
- The terminals are manufactured with high grade materials such as copper alloy, brass, and phosphor bronze.
- The Housing is fabricated using polyamide resins. All of the materials together provide the connectors with prolonged life and superior performance in harsh environments.
- All electrical connectors are 100% tested for proper mechanical and electrical fit, form and function.
- Offering thousands of high-quality pigtails and sockets for nearly every electrical job.
Product Attributes
| Attachment Method | Push On |
| Bend Angle (Deg.) | 0 |
| Connector Gender | Male |
| Connector Quantity | 1 |
| Connector Shape | Rectangle |
| Contact Terminal Material | Metal |
| Dust Shield Included | No |
| Length - Inches | 1.125 |
| Material | Plastic |
| Mounting Bracket(s) Included | No |
| Number Of Splice Connectors Includ | 3 |
| Number of Wires | 3 |
| Splice Connectors Included | Yes |
| Terminal Gender | Female |
| Terminal Quantity | 3 |
| Terminal Type | Blade |
| Water Resistant | Yes |
| Weatherproof Sealed | Yes |
| Wire Gauge (ga) | 16 |
| Wire Quantity | 3 |
| Wiring Harness Included | Yes |
| Wiring Harness Length (in) | 18 |
| Wiring Harness Length (mm) | 457.2 |
Additional Information
| Country of Origin (Primary) | TW |
| Harmonized Tariff Code (HTS) | 8536908085 |
| Warranty Distance | 36000 |
| Warranty Distance UOM | MI |
| Warranty Time | 36 |
| Warranty Time UOM | MO |
| UPC | 00033086482446 |
Part Interchanges
Fits Vehicles
- Saturn Aura (2007-2009)
- GMC Canyon (2015-2019)
- Chevrolet Traverse (2009-2012)
- Chevrolet Colorado (2008-2012, 2015-2019)
- Chevrolet Aveo (2009-2011)
- Dodge Viper (2016-2017)
- Dodge Journey (2011-2020)
- Dodge Charger (2011-2023)
- Dodge Challenger (2015-2023)
- Chrysler 300 (2011-2023)
- Chevrolet Volt (2011-2015)
- Chevrolet Sonic (2012-2019)
- Cadillac ELR (2014-2016)
- Saturn Relay (2005-2007)
- Chevrolet Spark (2013-2022)
- Chevrolet Cruze (2011-2019)
- Pontiac G5 (2009-2010)
- Chevrolet Camaro (2010-2011, 2014-2016)
- Chevrolet HHR (2008-2011)
- Saturn Sky (2007-2009)
- Saturn Outlook (2007-2009)
- Pontiac G8 (2008-2009)
- Chevrolet Equinox (2008-2011)
- Chevrolet Cobalt (2008-2010)
- Subaru Tribeca (2008-2012)
- GMC Acadia (2007-2009)
- Buick Enclave (2008-2017)
- Chevrolet Impala (2006-2012)
- Buick Lucerne (2006-2011)
- Cadillac STS (2005-2011)
- Chevrolet Monte Carlo (2006-2007)
- Pontiac Solstice (2006-2009)
- Pontiac Montana (2006, 2009)
- Buick Allure (2005-2009)
- Cadillac DTS (2006-2010)
- Pontiac G6 (2005-2010)
- Buick LaCrosse (2005-2009)
- Subaru B9 Tribeca (2006-2007)
- Chevrolet Corvette (2005-2019)
- Buick Terraza (2005-2007)
- Chevrolet Uplander (2005-2008)
- Cadillac XLR (2004-2009)
- Pontiac Grand Prix (2004-2008)
- Cadillac SRX (2004-2009)
- Chevrolet Malibu (2004-2012)
- Cadillac CTS (2004-2014)
- Subaru Baja (2003-2006)
- Subaru Outback (2000-2012)
- Subaru SVX (1992-1997)
- Subaru Impreza (1999-2007)
- Subaru Legacy (1990-2012)
- Subaru Forester (1999-2012)
