Centric 320.42094 - Centric GCX Rotor with Partial Coating
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
CENTRIC part description
Product Description

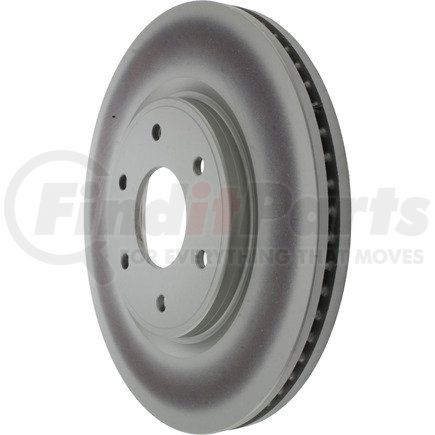

Centric GCX Rotor with Partial Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
Product Attributes
| Weight [cntrc] Lbs | 28.450 |
| Product Grade [cntrc] | Premium |
| Disc Mounting [cntrc] | Floating |
| Vane Style [cntrc] | Straight |
| Misc Holes [cntrc] | 0 |
| Weight [cntrc] Kgs | 12.930 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Discard Thickness | 1.122 IN |
| Discard Thickness | 28.500 MM |
| Nominal Thickness | 30.000 MM |
| Nominal Thickness | 1.181 IN |
| Disc Finish | Partially Coated |
| Hat Finish | Coated |
| Overall Height | 43.300 MM |
| Overall Height | 1.705 IN |
| Outside Diameter | 350.000 MM |
| Outside Diameter | 13.780 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 3.232 IN |
| Center Hole Diameter | 82.100 MM |
| Mounting Bolt Hole Circle Diameter | 140.000 MM |
| Mounting Bolt Hole Circle Diameter | 5.512 IN |
| Stud/Lug Hole Quantity | 6 |
| Stud/Lug Hole Diameter | 13.400 MM |
| Stud/Lug Hole Diameter | 0.528 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590389166 |
Part Interchanges
CENTRIC 320.42094 Cross Reference
We have 2 alternatives for the 320.42094 by CENTRIC:
