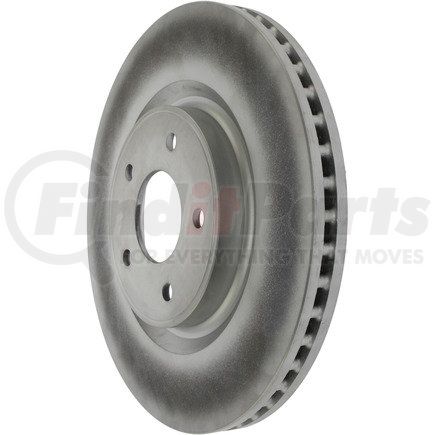

Centric 320.42117 - Centric GCX Rotor with Partial Coating
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
CENTRIC part description
Product Description
Centric GCX Rotor with Partial Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
Product Attributes
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Misc Holes [cntrc] | 0 |
| Disc Mounting [cntrc] | Floating |
| Vane Style [cntrc] | Straight |
| Product Grade [cntrc] | Premium |
| Weight [cntrc] Lbs | 22.100 |
| Weight [cntrc] Kgs | 10.220 |
| OEM Vane Count [cntrc] | 48 |
| Hat Id [cntrc] In | 5.693 |
| Hat Id [cntrc] Mm | 144.600 |
| Discard Thickness | 1.024 IN |
| Discard Thickness | 26.000 MM |
| Nominal Thickness | 28.100 MM |
| Nominal Thickness | 1.106 IN |
| Disc Finish | Partially Coated |
| Hat Finish | Coated |
| Overall Height | 44.000 MM |
| Overall Height | 1.732 IN |
| Outside Diameter | 12.559 IN |
| Outside Diameter | 319.000 MM |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 2.677 IN |
| Center Hole Diameter | 68.000 MM |
| Mounting Bolt Hole Circle Diameter | 114.300 MM |
| Mounting Bolt Hole Circle Diameter | 4.500 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 12.800 MM |
| Stud/Lug Hole Diameter | 0.504 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590389265 |
