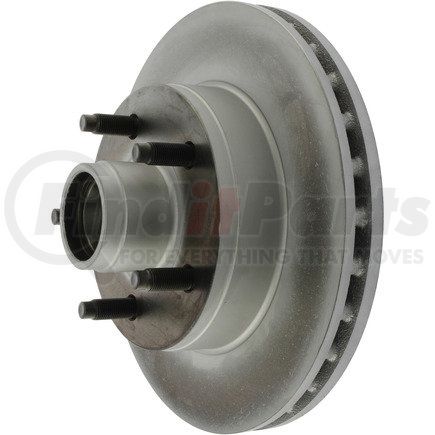

Centric 320.65048 - Centric GCX Rotor with Partial Coating
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
CENTRIC part description
Product Description
Centric GCX Rotor with Partial Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
Product Attributes
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Inner Seal # [cntrc] | 417.61003 |
| Disc Mounting [cntrc] | Hub & Rotor |
| Weight [cntrc] Lbs | 19.000 |
| Inner Bearing # [cntrc] | 410.91005 |
| Weight [cntrc] Kgs | 8.640 |
| Outer Bearing # [cntrc] | 410.91002 |
| Misc Holes [cntrc] | 0 |
| Vane Style [cntrc] | Straight |
| Product Grade [cntrc] | Premium |
| Discard Thickness | 24.500 MM |
| Discard Thickness | 0.965 IN |
| Nominal Thickness | 26.100 MM |
| Nominal Thickness | 1.028 IN |
| Disc Finish | Partially Coated |
| Hat Finish | Coated |
| Stud Thread Diameter | 0.500 IN |
| Overall Height | 108.000 MM |
| Overall Height | 4.252 IN |
| ABS Tone Ring Included | Yes |
| Surface Type | Smooth |
| 54 | 261.000 MM |
| Rotor Outside Diameter | 10.276 in |
| Solid Or Vented Type Rotor | Vented |
| Bolt Thread Pitch | 20.000 IN |
| Bearings Included | No |
| Center Hole Diameter | 63.700 MM |
| Center Hole Diameter | 2.508 IN |
| Mounting Bolt Hole Circle Diameter | 114.300 MM |
| Mounting Bolt Hole Circle Diameter | 4.500 IN |
| Stud/Lug Hole Quantity | 5 |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590425673 |
Part Interchanges
CENTRIC 320.65048 Cross Reference
We have 2 alternatives for the 320.65048 by CENTRIC:
