Centric 320.61047 - Centric GCX Rotor with Partial Coating
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
CENTRIC part description
Product Description

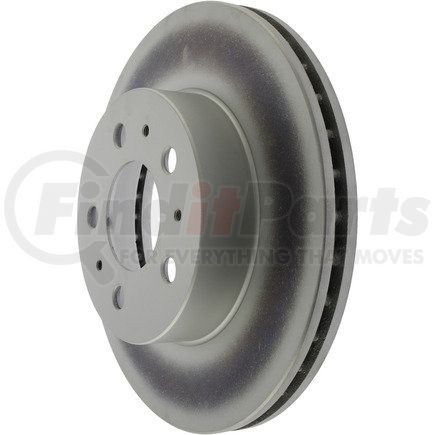

Centric GCX Rotor with Partial Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
Product Attributes
| Vane Style [cntrc] | Straight |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Weight [cntrc] Lbs | 18.000 |
| Misc Holes [cntrc] | 3 |
| Product Grade [cntrc] | Premium |
| Disc Mounting [cntrc] | Floating |
| Weight [cntrc] Kgs | 8.180 |
| Discard Thickness | 0.974 IN |
| Discard Thickness | 24.750 MM |
| Nominal Thickness | 26.160 MM |
| Nominal Thickness | 1.030 IN |
| Disc Finish | Partially Coated |
| Hat Finish | Coated |
| Overall Height | 65.900 MM |
| Overall Height | 2.594 IN |
| Outside Diameter | 11.457 IN |
| Outside Diameter | 291.000 MM |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 71.800 MM |
| Center Hole Diameter | 2.827 IN |
| Mounting Bolt Hole Circle Diameter | 114.300 MM |
| Mounting Bolt Hole Circle Diameter | 4.500 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 15.200 MM |
| Stud/Lug Hole Diameter | 0.598 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590414905 |
Part Interchanges
CENTRIC 320.61047 Cross Reference
We have 2 alternatives for the 320.61047 by CENTRIC:
