CENTRIC 320.46054 Part Description
Manufacturer
Product Description

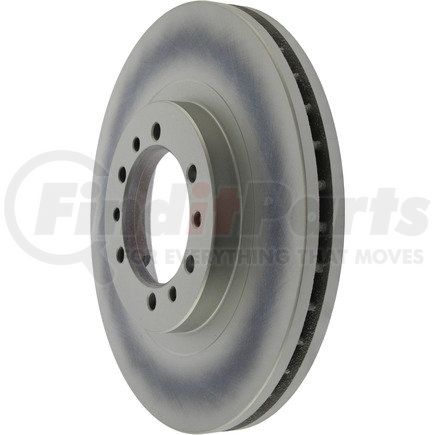

Centric GCX Rotor with Partial Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
CENTRIC 320.46054 Specifications
Product Attributes
| Weight [cntrc] Lbs | 15.000 |
| Misc Holes [cntrc] | 2 |
| Weight [cntrc] Kgs | 6.820 |
| Disc Mounting [cntrc] | Behind the Hub |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Product Grade [cntrc] | Premium |
| Vane Style [cntrc] | Straight |
| Discard Thickness | 25.400 MM |
| Discard Thickness | 1.000 IN |
| Nominal Thickness | 27.000 MM |
| Nominal Thickness | 1.063 IN |
| Disc Finish | Partially Coated |
| Hat Finish | Coated |
| Overall Height | 45.200 MM |
| Overall Height | 1.780 IN |
| Outside Diameter | 276.000 MM |
| Outside Diameter | 10.866 IN |
| Mounting Bolt Hole Quantity | 6 |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 3.425 IN |
| Center Hole Diameter | 87.000 MM |
| Mounting Bolt Hole Circle Diameter | 108.000 MM |
| Mounting Bolt Hole Circle Diameter | 4.252 IN |
| Mounting Bolt Hole Diameter | 10.600 MM |
| Mounting Bolt Hole Diameter | 0.417 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590390179 |
