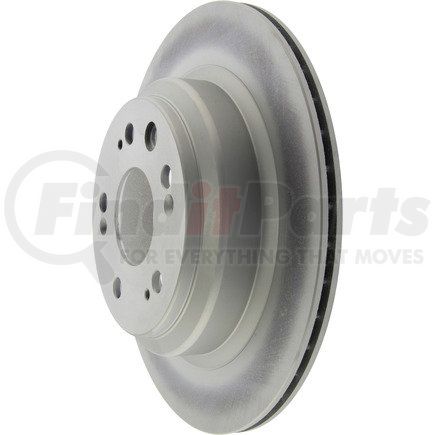

Centric 320.40067 - Centric GCX Rotor with Partial Coating
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
CENTRIC part description
Product Description
Centric GCX Rotor with Partial Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
Product Attributes
| Disc Mounting [cntrc] | Floating / DIH |
| Vane Style [cntrc] | Straight |
| Max Pb Drum Dia [cntrc] In | 7.520 |
| Weight [cntrc] Kgs | 5.230 |
| Product Grade [cntrc] | Premium |
| Weight [cntrc] Lbs | 11.500 |
| Misc Holes [cntrc] | 5 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Max Pb Drum Dia [cntrc] Mm | 191.000 |
| Discard Thickness | 14.000 MM |
| Discard Thickness | 0.551 IN |
| Nominal Thickness | 16.000 MM |
| Nominal Thickness | 0.630 IN |
| Disc Finish | Partially Coated |
| Hat Finish | Coated |
| Overall Height | 67.000 MM |
| Overall Height | 2.638 IN |
| Outside Diameter | 309.500 MM |
| Outside Diameter | 12.185 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Nominal Drum Diameter | 189.500 MM |
| Nominal Drum Diameter | 7.461 IN |
| Bearings Included | No |
| Center Hole Diameter | 2.760 IN |
| Center Hole Diameter | 70.100 MM |
| Mounting Bolt Hole Circle Diameter | 120.000 MM |
| Mounting Bolt Hole Circle Diameter | 4.724 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 14.700 MM |
| Stud/Lug Hole Diameter | 0.579 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590388817 |
Part Interchanges
CENTRIC 320.40067 Cross Reference
We have 3 alternatives for the 320.40067 by CENTRIC:
