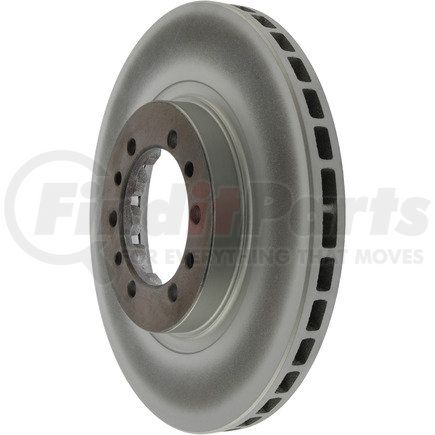

Centric 320.46040 - Centric GCX Rotor with Partial Coating
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
CENTRIC part description
Product Description
Centric GCX Rotor with Partial Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
Product Attributes
| Weight [cntrc] Kgs | 5.910 |
| Disc Mounting [cntrc] | Behind the Hub |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Misc Holes [cntrc] | 4 |
| Product Grade [cntrc] | Premium |
| Vane Style [cntrc] | Straight |
| Weight [cntrc] Lbs | 13.000 |
| Discard Thickness | 0.882 IN |
| Discard Thickness | 22.400 MM |
| Nominal Thickness | 24.000 MM |
| Nominal Thickness | 0.945 IN |
| Disc Finish | Partially Coated |
| Hat Finish | Coated |
| Overall Height | 45.100 MM |
| Overall Height | 1.776 IN |
| Outside Diameter | 276.000 MM |
| Outside Diameter | 10.866 IN |
| Mounting Bolt Hole Quantity | 6 |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 3.425 IN |
| Center Hole Diameter | 87.000 MM |
| Mounting Bolt Hole Circle Diameter | 108.000 MM |
| Mounting Bolt Hole Circle Diameter | 4.252 IN |
| Mounting Bolt Hole Diameter | 10.600 MM |
| Mounting Bolt Hole Diameter | 0.417 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590390131 |
Part Interchanges
CENTRIC 320.46040 Cross Reference
We have 1 alternatives for the 320.46040 by CENTRIC:
