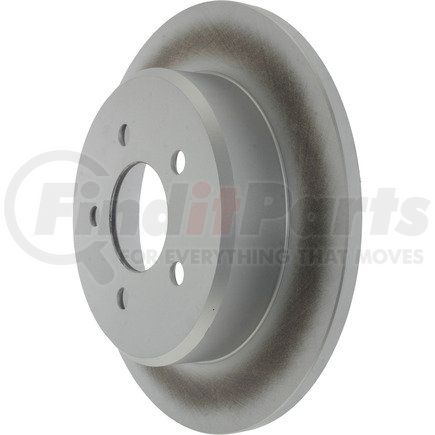

Centric 320.61032 - Centric GCX Rotor with Partial Coating
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
CENTRIC part description
Product Description
Centric GCX Rotor with Partial Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
Product Attributes
| Max Pb Drum Dia [cntrc] In | 7.126 |
| Weight [cntrc] Kgs | 5.910 |
| Product Grade [cntrc] | Premium |
| Weight [cntrc] Lbs | 13.000 |
| Max Pb Drum Dia [cntrc] Mm | 181.000 |
| Disc Mounting [cntrc] | Floating / DIH |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Misc Holes [cntrc] | 0 |
| Discard Thickness | 11.250 MM |
| Discard Thickness | 0.443 IN |
| Nominal Thickness | 12.400 MM |
| Nominal Thickness | 0.488 IN |
| Disc Finish | Partially Coated |
| Hat Finish | Coated |
| Overall Height | 58.600 MM |
| Overall Height | 2.307 IN |
| Outside Diameter | 290.100 MM |
| Outside Diameter | 11.421 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Solid |
| Nominal Drum Diameter | 180.100 MM |
| Nominal Drum Diameter | 7.091 IN |
| Bearings Included | No |
| Center Hole Diameter | 2.783 IN |
| Center Hole Diameter | 70.700 MM |
| Mounting Bolt Hole Circle Diameter | 114.300 MM |
| Mounting Bolt Hole Circle Diameter | 4.500 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 14.500 MM |
| Stud/Lug Hole Diameter | 0.571 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590391022 |
