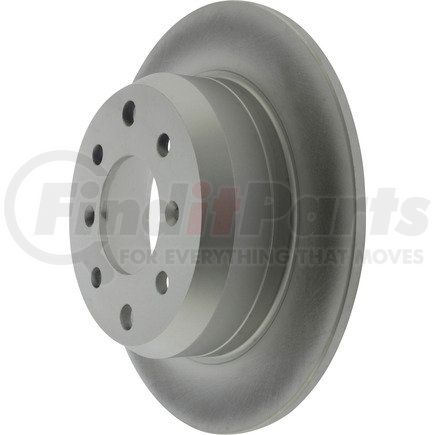

Centric 320.02000 - Centric GCX Rotor with Partial Coating
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
CENTRIC part description
Product Description
Centric GCX Rotor with Partial Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
Product Attributes
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Disc Mounting [cntrc] | Floating / DIH |
| Weight [cntrc] Lbs | 11.000 |
| Weight [cntrc] Kgs | 5.000 |
| Misc Holes [cntrc] | 4 |
| Product Grade [cntrc] | Premium |
| Discard Thickness | 0.295 IN |
| Discard Thickness | 7.500 MM |
| Nominal Thickness | 9.400 MM |
| Nominal Thickness | 0.370 IN |
| Disc Finish | Partially Coated |
| Hat Finish | Coated |
| Overall Height | 65.200 MM |
| Overall Height | 2.567 IN |
| Outside Diameter | 267.000 MM |
| Outside Diameter | 10.512 IN |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Solid |
| Nominal Drum Diameter | 6.299 IN |
| Nominal Drum Diameter | 160.000 MM |
| Bearings Included | No |
| Center Hole Diameter | 2.756 IN |
| Center Hole Diameter | 70.000 MM |
| Mounting Bolt Hole Circle Diameter | 108.000 MM |
| Mounting Bolt Hole Circle Diameter | 4.252 IN |
| Stud/Lug Hole Quantity | 4 |
| Stud/Lug Hole Diameter | 12.500 MM |
| Stud/Lug Hole Diameter | 0.492 IN |
Additional Information
| Harmonized Tariff Code (HTS) | 8708305030 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| UPC | 889590386318 |
Part Interchanges
CENTRIC 320.02000 Cross Reference
We have 1 alternatives for the 320.02000 by CENTRIC:
