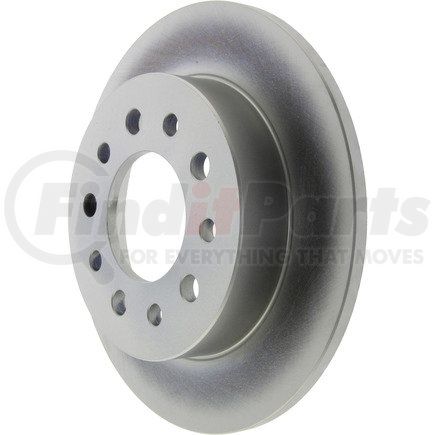

Centric 320.51016 - Centric GCX Rotor with Partial Coating
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
CENTRIC part description
Product Description
Centric GCX Rotor with Partial Coating
Features & Benefits
- RS200 Coating our exclusive corrosion resistant coating for longer life and good looks; Iron FormulationEnhanced iron and high carbon metallurgies means the right rotor for your car; Operational Efficiency Full coverage with 80% fewer SKUs
Product Attributes
| Disc Mounting [cntrc] | Floating |
| Misc Holes [cntrc] | 5 |
| California Proposition 65 Text [cntrc] | WARNING: Cancer and Reproductive Harm |
| Weight [cntrc] Kgs | 4.090 |
| Product Grade [cntrc] | Premium |
| Weight [cntrc] Lbs | 9.000 |
| Discard Thickness | 8.000 MM |
| Discard Thickness | 0.315 IN |
| Nominal Thickness | 0.394 IN |
| Nominal Thickness | 10.000 MM |
| Disc Finish | Partially Coated |
| Hat Finish | Coated |
| Overall Height | 45.300 MM |
| Overall Height | 1.783 IN |
| Outside Diameter | 10.157 IN |
| Outside Diameter | 258.000 MM |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Solid |
| Bearings Included | No |
| Center Hole Diameter | 76.000 MM |
| Center Hole Diameter | 2.992 IN |
| Mounting Bolt Hole Circle Diameter | 114.300 MM |
| Mounting Bolt Hole Circle Diameter | 4.500 IN |
| Stud/Lug Hole Quantity | 5 |
| Stud/Lug Hole Diameter | 12.500 MM |
| Stud/Lug Hole Diameter | 0.492 IN |
Additional Information
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (HTS) | 8708305030 |
| UPC | 889590390674 |
Part Interchanges
CENTRIC 320.51016 Cross Reference
We have 2 alternatives for the 320.51016 by CENTRIC:
