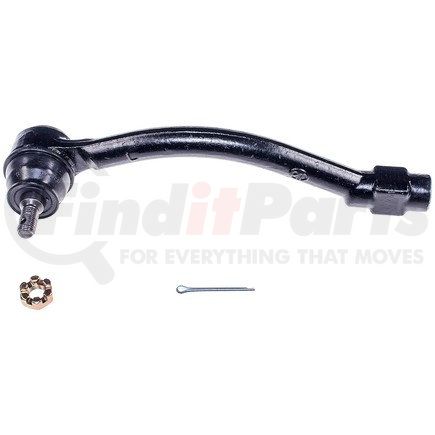

Dorman TO60201 - Steering Tie Rod End
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
DORMAN part description
Product Description
Steering Tie Rod End
Application Summary
Hyundai 2017-11, Kia 2019-14
Features & Benefits
- Trustworthy replacement - this steering tie rod end assembly directly replaces the original equipment on specific vehicle applications
- Durably designed - factory-sealed and precision-forged housing resists future corrosion
- Reliably engineered - built to decrease wear rate and ensure overall strength
- Trustworthy quality - backed by team of professional engineers and quality control specialists in the United States
Steering, Tie, Rod, End, Ties, Rods, Ends
Product Attributes
| End 2 Thread Diameter | 10 MM |
| Height | 56 MM |
| Housing Material | Acero |
| Tube Diameter | 20.3 MM |
| Length | 110 MM |
| Adjustable | Oui |
| Color | Noir |
| Bearing Material | Polímero |
| End 1 Gender | Hembra |
| End 1 Thread Direction | Rotar en el sentido contrario a las agujas del reloj (izquierda) |
| End 2 Gender | Macho |
| End 2 Thread Direction | Rotar en el sentido de las agujas del reloj (derecha) |
| Finish | Revestidos |
| Grade | Regular |
| Pre-Greased | Oui |
| Stud Type | Cono |
| Grease Fitting Included | Non |
| End 2 Thread Pitch | 1.25 MM |
| Dust Boot Included | Oui |
| End 1 Thread Pitch | 1.5 MM |
| Width | 42.4 MM |
| Dust Boot Material | Policloropreno |
| Type | Doblado |
| Tie Rod Material | Acero |
| Mounting Hardware Included | Oui |
| End 1 Thread Diameter | 16 MM |
| Bolts Included | Non |
| End 1 Attachment Type | Roscado |
| Material | Acero |
| Outside Diameter | 42.4 mm |
| Package Contents | 1 Tie Rod End |
| Thread Pitch | 1.25 mm |
| Weight | 1.6 lb |
| Contenidos del paquete | 1 extremo del terminal de la dirección |
| Outside Diameter | 42.4 mm MM |
| Thread Pitch | 1.25 mm mm |
| Weight | 1.6 Lbs LB |
Additional Information
| Country of Origin (Primary) | TR |
| Harmonized Tariff Code (Schedule B) | 8302300000 |
| UPC | 00669810275437 |
| VMRS Code | 011001031 |
| UNSPSC | 25174207 |
Part Interchanges
- Beck/Arnley 1017307
- Delphi TA2917
- MOOG Chassis Products ES801074
- ACDelco 45A2545
- XRF Chassis ES801074
- Centric Parts 612.51045
- Hyundai 568203X000
- Hyundai 56820A5000
- Hyundai 56820B2000
- TRW JTE1826
- Mevotech Supreme MS90642
- Mevotech Supreme MS90645
- ADVANTAGE 46A2546A
- SYD 1106041
- ACDelco 46A2546A
- XRF ES801074
Fits Vehicles
- Hyundai Elantra Coupe (2013-2014)
- Kia Soul (2014-2019)
- Hyundai Elantra (2011-2016)
- Hyundai Veloster (2012-2017)
- Kia Soul EV (2015-2019)
- Hyundai Elantra GT (2013-2017)
