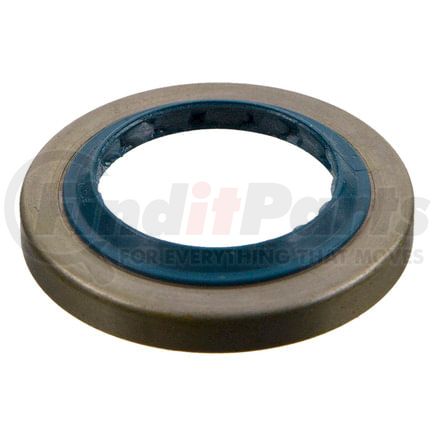

National Seals 711123 - National 711123 Transfer Case Pinion Shaft Seal
- Part Number
- 711123
- Manufacturer
- NATIONAL SEALS
- Description
-
National 711123 Transfer Case Pinion Shaft Seal
details
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
NATIONAL SEALS part description
Product Description
Transfer Case Pinion Shaft Seal
Application Summary
2005-2010 Volvo S40 (Drive: AWD); 2011-2019 Volvo S60 (Drive: AWD / Qualifier: with Haldex PTU Transfer Case, 1 Speed); 2007-2015 Volvo S80 (Drive: AWD); 2017-2019 Volvo S90 (Drive: AWD); 2018-2019 Volvo V90 (Drive: AWD / Qualifier: with Haldex PTU Transfer Case, 1 Speed); 2008-2016 Volvo XC70 (Drive: AWD / Qualifier: with Haldex PTU Transfer Case, 1 Speed); 2005-2019 Volvo XC90 (Drive: AWD); 2015-2019 Volvo V60 (Drive: AWD / Qualifier: with Haldex PTU Transfer Case, 1 Speed); 2015-2019 Volvo V60 Cross Country (Drive: AWD); 2016-2018 Volvo S60 Cross Country (Drive: AWD / Qualifier: with Haldex PTU Transfer Case, 1 Speed); 2017-2019 Volvo V90 Cross Country (Drive: AWD); 2010-2019 Volvo XC60 (Drive: AWD); 2005-2007 Ford Five Hundred (Drive: AWD / Qualifier: with Haldex PTU Transfer Case, 1 Speed); 2005-2007 Ford Freestyle (Drive: AWD); 2005-2007 Mercury Montego (Drive: AWD)
Features & Benefits
- Design type: springless; multi-lip
- Temperature range: -20°F to 300°F / -29°C to 49°C
- Temperature range: -20degF to 300degF / -29degC to 49degC
- Resistance to EP lubricants
- Low swell in hydrocarbon fluids
- Delivers quality and reliable performance for every type of repair
Product Attributes
| Outside Diameter | 1.874 IN |
| Outside Diameter | 47.600 MM |
| Width | 0.228 in |
| Width | 5.800 MM |
| Material | Polyacrylate |
| Part Description | Oil Seal |
| Series | 711100 |
| Type | 49 |
| Unit of Dimension | Metric |
| Housing Bore | 1.866 in |
| Housing Bore | 47.400 MM |
| Overall Width with Side Lip | 9.000 MM |
| Overall Width with Side Lip | 0.354 in |
| Shaft Diameter | 1.181 IN |
| Shaft Diameter | 30.000 MM |
| Grade Type | Premium |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 4016931020 |
| Harmonized Tariff Code (HTS) | 4016931020 |
| Canadian Harmonizing Tariff Code | 4016930000 |
| UPC | 00019826229700 |
Part Interchanges
Fits Vehicles
- Volvo V90 (2018-2019)
- Volvo V90 Cross Country (2017-2019)
- Volvo S90 (2017-2019)
- Volvo S60 Cross Country (2016-2018)
- Volvo V60 Cross Country (2015-2019)
- Volvo V60 (2015-2019)
- Volvo S60 (2011-2019)
- Volvo XC60 (2010-2019)
- Volvo XC70 (2008-2016)
- Volvo S80 (2007-2015)
- Volvo XC90 (2005-2014, 2016-2019)
- Volvo S40 (2005-2010)
- Mercury Montego (2005-2007)
- Ford Five Hundred (2005-2007)
- Ford Freestyle (2005-2007)
