DORMAN TO45002XL Part Description
Manufacturer
Product Description

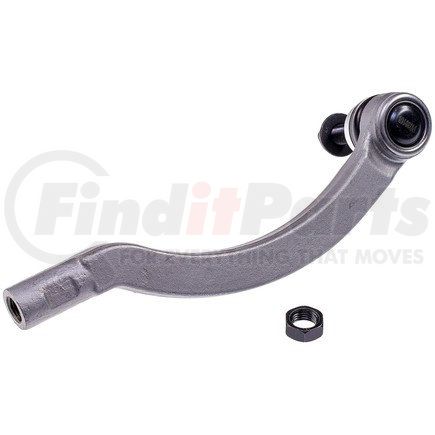

Steering Tie Rod End
Application Summary
Volvo S60 2009-01, Volvo S80 2006-00, Volvo V70 2007-01
Features & Benefits
- Extended-life construction - this tie rod end is built with features to deliver smooth performance and extended durability for demanding drivers
- Superior ball stud - hardened ArmourGrade stud with highly polished EverSmooth ball
- Low-friction bearing - UltraFlow normalized forged housing with I.C.E. synthetic grease and low-friction polymer bearing
- Premium corrosion resistance - WeatherShield external coating to resist corrosion
Steering, Tie, Rod, End, Ties, Rods, Ends
DORMAN TO45002XL Specifications
Product Attributes
| Tie Rod Material | Acero |
| End 1 Thread Diameter | 12 MM |
| Bolts Included | Non |
| End 1 Attachment Type | Roscado |
| Material | Acero |
| Outside Diameter | 12 mm |
| Package Contents | 1 Tie Rod End |
| Thread Pitch | M1.75 |
| Weight | 2.16 lb |
| Length | 110 MM |
| Color | Noir |
| End 1 Gender | Macho |
| End 2 Gender | Hembra |
| Finish | Revestidos |
| Pre-Greased | Oui |
| Grease Fitting Included | Non |
| Dust Boot Included | Oui |
| Width | 37.4 MM |
| Type | Doblado |
| Mounting Hardware Included | Oui |
| End 2 Thread Diameter | 14 MM |
| Height | 79 MM |
| Housing Material | Acero |
| Tube Diameter | 17.7 MM |
| Adjustable | Oui |
| Bearing Material | Polímero |
| End 1 Thread Direction | Rotar en el sentido de las agujas del reloj (derecha) |
| End 2 Thread Direction | Rotar en el sentido contrario a las agujas del reloj (izquierda) |
| Grade | Regular |
| Stud Type | Cono |
| Head Drive Type | Hexagonal |
| End 2 Thread Pitch | 1.5 MM |
| End 1 Thread Pitch | 1.75 MM |
| Dust Boot Material | Policloropreno |
| Contenidos del paquete | 1 extremo del terminal de la dirección |
| Outside Diameter | 12 mm MM |
| Thread Pitch | M1.75 mm |
| Grade Type | Reemplazo estándar |
| Diámetro la rosca de extremo 1 | 12 mm MM |
| Diámetro la rosca de extremo 2 | 14 mm MM |
| End 1 Thread Diameter | 12 mm MM |
| End 1 Thread Pitch | M1.75 mm |
| End 2 Thread Diameter | 14 mm MM |
| End 2 Thread Pitch | M1.5 MM |
| Espacio de la rosca del extremo 1 | M1.75 MM |
| Espacio de la rosca del extremo 2 | M1.5 MM |
| Paso de rosca | M1.75 MM |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708948000 |
| Warranty Special | Limited |
| Warranty Special UOM | LF |
| UPC | 00669810716497 |
| VMRS Code | 011001031 |
| UNSPSC | 25174207 |
DORMAN TO45002XL Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 45A0971 |
| Beck/Arnley | 1015759, 101-5759 |
| Centric Parts | 612.39021 |
| Delphi | TA1822 |
| MEVOTECH | MES80981 |
| MEYLE | 5160200019 |
| MOOG | ES80982 |
| MOOG Chassis Products | ES3257, ES80982 |
| Mcquay-Norris | ES4162 |
| Mevotech Original Grade | GES80982 |
| Mevotech Supreme | MES80982, MES3257 |
| QuickSteer | ES80982 |
| SUSPENSIA | X53TE4560 |
| SYD | 1127006 |
| TRW | JTE1003 |
| Volvo | 274176, 2741760, 30761718 |
| XRF | ES80982 |
| XRF Chassis | ES80982 |
DORMAN TO45002XL Fits Vehicles
- Volvo V70 (2001-2007)
- Volvo S80 (2000-2006)
- Volvo S60 (2001-2009)
