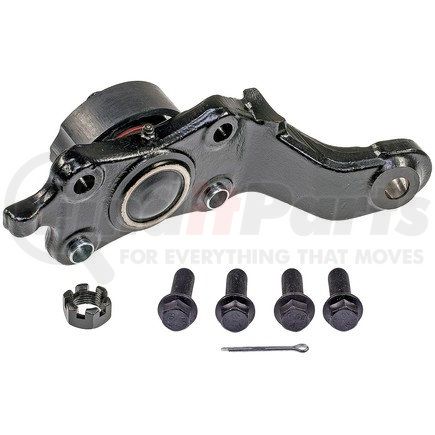

(888) 312-8812 Login SignupDORMAN BJ74303XL Suspension Ball Joint
Tap to view 1 more
$11199
Limited availability at this price!
5 Day Lead Time
Get it by Thursday, Feb 19
DORMAN BJ74303XL Part Description
Manufacturer
Product Description
Suspension Ball Joint
Application Summary
Toyota Sequoia 2007-04, Toyota Tundra 2006-04
Features & Benefits
- Extended-life construction - this ball joint is built with features to deliver smooth performance and extended durability for demanding drivers
- Superior ball stud - hardened ArmourGrade stud with highly polished EverSmooth ball
- Low-friction bearing - UltraFlow normalized forged housing with I.C.E. synthetic grease and low-friction polymer bearing
- Premium corrosion resistance - WeatherShield external coating to resist corrosion
Suspension, Ball, Joint, Joints, Balls, Suspensions
DORMAN BJ74303XL Specifications
Product Attributes
| Material | Acero |
| Stud Thread Diameter | 12 MM |
| Castle Nut Included | Oui |
| Suspension Grade Type | Reemplazo estándar |
| Cotter Pin Hole | Oui |
| Mounting Hardware Included | Oui |
| Mounting Hole Quantity | 4 |
| Adjustable | Non |
| Greaseable | Non |
| Stud Type | Roscado |
| Mounting Type | Atornillado |
| Dust Boot Material | Policloropreno |
| Attachment Type | Cono |
| Bearing Material | Polímero |
| Bolts/Studs Included | Oui |
| Package Contents | 1 Ball Joint |
| Thread Pitch | M1.25 |
| Length | 111 MM |
| Color | Gris |
| Width | 59 MM |
| Type | Roscado |
| Height | 85.03 MM |
| Wrench Size | 12 mm MM |
| Maximum Outside Diameter | 61 MM |
| Grease Fitting Included | Non |
| Bushings Included | Non |
| Dust Boot Included | Oui |
| Ball Joint Assembly | Oui |
| Cotter Pin Included | Non |
| Washers Included | Non |
| Nuts Included | Oui |
| Stud Thread Length | 35.5 MM |
| Bushing Quantity | 0 |
| Mounting Bolts Included | Non |
| Mount Plate Included | Non |
| Tapered Stud | Oui |
| Stud Taper Per Foot | 2 IN |
| Stud Tapered End 2 Diameter | 22 MM |
| Stud Tapered End 1 Diameter | 27.2 MM |
| Stud Thread Pitch | 1.5 MM |
| Articulación de rótula instalada | Sí |
| Ball Joint Installed | Oui |
| Bushing Included | Non |
| Contenidos del paquete | 1 rótula |
| Diámetro del acoplado a presión de la caja | 45mm mm |
| Housing Press Fit Diameter | 45 mm MM |
| Pernos/argollas incluidos | Sí |
| Thread Pitch | 1.25 mm mm |
| Diámetro de la rosca de la argolla | 12 mm MM |
| Espacio de la rosca del espárrago | 1,5mm MM |
| Nuts Included | Oui |
| Paso de rosca | 1.25 mm MM |
| Stud Thread Diameter | 12 mm MM |
| Stud Thread Pitch | 1.5 mm MM |
Additional Information
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8708807000 |
| Warranty Special | Limited |
| Warranty Special UOM | LF |
| UPC | 00669810707884 |
| VMRS Code | 016001015 |
| UNSPSC | 25174203 |
DORMAN BJ74303XL Cross References
| Brand | Part Number |
|---|---|
| ACDelco | 45D2345, 46D2346A |
| Beck/Arnley | 1015282, 101-5282 |
| Centric Parts | 610.44038 |
| Delphi | TC5552 |
| MEVOTECH | MK80522, TXMS86564 |
| MOOG | K80522 |
| MOOG Chassis Products | K80522, K500435 |
| Mcquay-Norris | FA2274 |
| Mevotech Original Grade | GK80522 |
| Mevotech Supreme | MK80522 |
| Mevotech TTX | TXMS86564 |
| QuickSteer | K80522 |
| SUSPENSIA | X50BJ7116 |
| SYD | 1025019 |
| TRW | JBJ941 |
| Toyota | 4334039515, 4334039525, 4334039595 |
| XRF | K80522 |
| XRF Chassis | K80522 |
DORMAN BJ74303XL Fits Vehicles
- Toyota Sequoia (2004-2007)
- Toyota Tundra (2004-2006)
DORMAN BJ74303XL Customer Reviews
No reviews yet
Be the first to review this product!
DORMAN BJ74303XL Manufacturer Information
Dorman® is a trusted supplier of premium-quality replacement parts, hardware, and fasteners to the automotive aftermarket. Since 1918, it has introduced thousands of these replacement parts that customers could once only get from original equipment manufacturers. Dorman believes that customers should always come first. So its dedicated team of engineers and designers creates each Dorman product with only one goal in mind—to make repair tasks easier and faster for mechanics and to save vehicle owners money from expensive repairs. Dorman continually expands its product line-up to offer a broader range of hard-to-find parts and accessories that could replace rare or expensive OEM parts.
