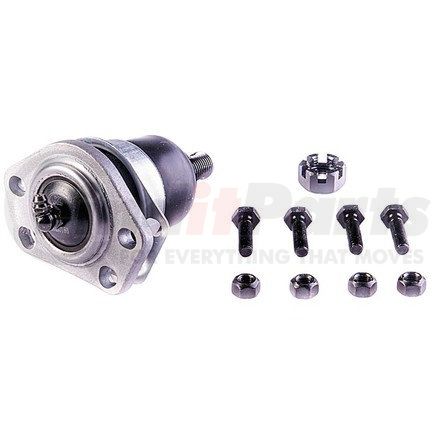

Name: Dorman B5320XL Suspension Ball Joint
SKU: b5320xl
Price: 33.49 USD
Availability: InStock

DORMAN part description

Product Description

Suspension Ball Joint

Application Summary

Chevrolet 2005-84, GMC 2005-84, Isuzu 2000-98, Oldsmobile 2001-96, Oldsmobile 1994-91

Features & Benefits

Extended-life construction - this ball joint is built with features to deliver smooth performance and extended durability for demanding drivers
Superior ball stud - hardened ArmourGrade stud with highly polished EverSmooth ball
Low-friction bearing - UltraFlow normalized forged housing with I.C.E. synthetic grease and low-friction polymer bearing
Premium corrosion resistance - WeatherShield external coating to resist corrosion

Suspension, Ball, Joint, Joints, Balls, Suspensions

Product Attributes

Material	Acero
Stud Thread Diameter	0.5 IN
Castle Nut Included	Oui
Suspension Grade Type	Premium
Cotter Pin Hole	Oui
Mounting Hardware Included	Oui
Mounting Hole Quantity	4
Adjustable	Non
Greasable	Oui
Stud Type	Cónico
Mounting Type	Con perno
Dust Boot Material	Policloropreno
Attachment Type	Cono
Bearing Material	Polímero
Bolts/Studs Included	Oui
Package Contents	4 Bolts
Thread Pitch	20
Length	111 MM
Color	Gris
Width	59 MM
Type	Roscado
Height	85.03 MM
Wrench Size	12 mm MM
Maximum Outside Diameter	61 MM
Grease Fitting Included	Non
Bushings Included	Non
Dust Boot Included	Oui
Ball Joint Assembly	Oui
Cotter Pin Included	Non
Washers Included	Non
Nuts Included	Oui
Stud Thread Length	35.5 MM
Bushing Quantity	0
Mounting Bolts Included	Non
Mount Plate Included	Non
Tapered Stud	Oui
Stud Taper Per Foot	2 IN
Stud Tapered End 2 Diameter	22 MM
Stud Tapered End 1 Diameter	27.2 MM
Stud Thread Pitch	1.5 MM
Articulación de rótula instalada	Sí
Ball Joint Installed	Oui
Bushing Included	Non
Contenidos del paquete	4 tornillos
Diámetro del acoplado a presión de la caja	45mm mm
Housing Press Fit Diameter	45 mm MM
Pernos/argollas incluidos	Sí
Thread Pitch	20 mm mm

Additional Information

Country of Origin (Primary)	CN
Harmonized Tariff Code (Schedule B)	4016995010
UPC	00669810706436
VMRS Code	016001015
UNSPSC	25174203

Part Interchanges

Fits Vehicles

Oldsmobile Bravada (1991-1994, 1996-2001)
GMC Typhoon (1992-1993)
GMC Syclone (1991)
GMC Sonoma (1991-2004)
GMC S15 (1984-1990)
GMC Jimmy (1992-2005)
GMC S15 Jimmy (1984-1991)
Chevrolet S10 (1984-2004)
Chevrolet Blazer (1995-2005)
Chevrolet S10 Blazer (1984-1994)
Isuzu Hombre (1998-2000)
