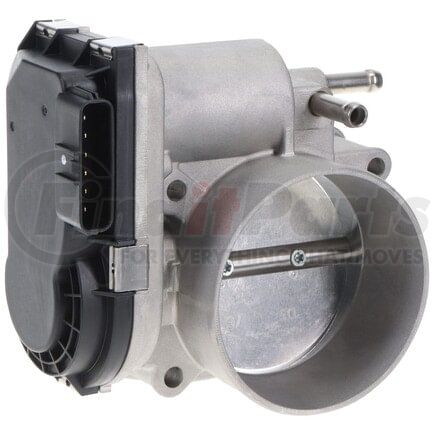

A-1 Cardone 6E-8007 - Fuel Injection Throttle Body
- Part Number
- 6E-8007
- Manufacturer
- A-1 CARDONE
- Description
-
Fuel Injection Throttle Body
details
$40599
In stock
limited availability at this price!
Pay over 3-12 months with
. Learn more
. Learn more
A-1 CARDONE part description
Product Description
Fuel Injection Throttle Body
Application Summary
Lexus GX470 2009-05, LX470 2007-06, LX570 2020-13 2011-08; Toyota 4Runner 2009-05, Land Cruiser 2020-13 2011-06, Sequoia 2022-05, Tundra 2020-05
Features & Benefits
- Critical components used in manufacturing the electronic throttle body, including the housing, throttle plate, position sensors, throttle actuator motor and throttle plate return spring conform to precise O.E. dimensions.
- Each throttle body is tested for all critical functions, including response time and air flow at multiple points, ensuring an optimal fuel/air ratio.
- 100% computerized testing of motor, throttle position sensor and articulation ensures reliable and consistent performance.
Throttle Body, Throttle, Fuel Injection Throttle Body, Intake, Air Intake, Throttle Valve, Carburetor, Manifold, TBI, ETB, Electronic Throttle Body, Mechanical Throttle Body, Throttle Bore, Throttle Blade
Product Attributes
| Package Contents | Electronic Throttle Body; Instruction Sheet |
| Product Condition | New |
| Housing Material | Aluminum |
| Housing Color/Finish | Gray |
| Throttle Body Actuation Type | Electric |
| Throttle Body Inlet Shape | Round |
| Throttle Body Outlet Shape | Round |
| E-waste | Yes |
| FAQs | Will I have to modify anything on the vehicle to install your new throttle body? |
| Features and Benefits | Each unit is guaranteed to fit and function like the original. |
| Throttle Body Material | Aluminum, Steel, Plastic |
| Throttle Body Finish | Finished |
| Throttle Body Type | Electric |
| Inlet Type | Round |
| Outlet Type | Round |
| Venturi Quantity | 1 |
| Outlet Diameter (mm) | 77.00 |
| Inlet Diameter (mm) | 86.00 |
| Bore Diameter (mm) | 76.00 |
| Adjustable | No |
| Bore Diameter | 76.00 MM |
| Bore Diameter | 2.992 IN |
| Fuel Injectors Included | No |
| Fuel System Type | Gas |
| Gasket Or Seal Included | No |
| Idle Air Control Motor Included | No |
| Inlet Diameter | 86.00 MM |
| Inlet Diameter | 3.386 IN |
| Inlet Type | Circle |
| Mounting Hardware Included | No |
| Outlet Diameter | 77.00 MM |
| Outlet Diameter | 3.031 IN |
| Outlet Quantity | 1 |
| Outlet Type | Round |
| Throttle Body Finish | Natural |
| Throttle Body Spacer Included | No |
| Throttle Body Type | Electric |
| Throttle Position Sensor Included | Yes |
| Venturi Quantity | 1 |
| Terminal Type | Blade |
| FAQ_Q1 | Are your new throttle bodies the same design as O.E.? |
| FAA_A1 | The new electronic throttle body is engineered and manufactured to match the O.E. design. |
| FAQ_Q2 | Will I have to modify anything on the vehicle to install your new throttle body? |
| FAA_A2 | When installing the new electronic throttle body, there is no need to modify the vehicle for installation. |
| FAQ_Q3 | What’s an electronic throttle body? |
| FAA_A3 | The electronic throttle body is a powertrain component that has a plate, motor, and integrated position sensors which are utilized to regulate the amount of air entering the engine by opening the throttle valve to a desired angle via commands from the vehicle’s powertrain control module or throttle actuator control module. |
| FAQ_Q4 | What happens when an electronic throttle body fails? |
| FAA_A4 | When an electronic throttle body fails, the controlling module will illuminate the MIL/SES/CEL. The module will then activate a fail-safe mode operation and gradually reduce the engine’s speed back to an idle RPM. |
| FAQ_Q5 | What causes the electronic throttle body to fail? |
| FAA_A5 | The most common failure in an electronic throttle body is the integrated throttle position sensor. The ETB is equipped with high and low voltage reference throttle position sensor for redundancy. Either one of these sensors could fail, or possibly both. |
| FAQ_Q6 | Is there anything that has to be done after installing the replacement throttle body? |
| FAA_A6 | A relearn calibration procedure is necessary after installation of replacement throttle body. |
| FAQ_Q7 | Can I purchase a throttle body with a bigger bore to increase horsepower and improve my throttle response? |
| FAA_A7 | Swapping your throttle body for one with a bigger bore is not recommended. The throttle bodies we sell are specific to the application. |
| FAQ_Q8 | Do you sell throttle body spacers? |
| FAA_A8 | We do not sell throttle body spacers, nor do we recommend the use of a spacer. |
| FAQ_Q9 | The O.E. throttle body has coolant hoses attached. What’s the purpose? |
| FAA_A9 | The purpose of the attached coolant hoses is to keep the throttle body warm by the transfer of heat from the coolant to the housing, preventing moisture from freezing between the throttle body bore and throttle valve during extreme cold temperatures. |
| FAQ_Q10 | Is it OK to bypass the coolant hoses? |
| FAA_A10 | No, bypassing the coolant hoses is not recommended. There are cases where we sell units without coolant pipes, because we are following O.E. supersessions where the pipes have been removed. Instructions are provided for rerouting coolant hoses. |
| FAQ_Q11 | Do all throttle bodies have an ice-breaker mode for extreme cold starts? |
| FAA_A11 | Not all throttle bodies have this feature, where the throttle valve is reversed from its normal movement by the control module, which breaks up any ice formation between the throttle bore and valve. This feature is based on application. |
| FAQ_Q12 | What else does the throttle body control other than idle air bypass and acceleration throughout driving range? |
| FAA_A12 | The throttle body is also part of the cruise control, traction control, stability control, and pre-crash systems, as well as other systems that require engine torque management. |
| Contains Electronic Components | Circuit Board |
| Does it require SDS | No |
| Is Item A Chemical | No |
| Is Or Contains A Battery | No |
| Is Or Contains A Bulb | No |
| Is Prop Sixty Five Affected | No |
| Is the item CARB affected | No |
Additional Information
| Remanufactured Part | N |
| Warranty Distance UOM | MI |
| Warranty Special | Limited Lifetime |
| Warranty Special UOM | TX |
| Warranty Time UOM | MO |
| Country of Origin (Primary) | CN |
| Harmonized Tariff Code (Schedule B) | 8481809020 |
| Harmonized Tariff Code (HTS) | 8481809020 |
| Canadian Harmonizing Tariff Code | 8481800081 |
| UPC | 00884548250499 |
Part Interchanges
Fits Vehicles
- Lexus LX570 (2008-2011, 2013-2020)
- Toyota Land Cruiser (2006-2011, 2013-2020)
- Lexus LX470 (2006-2007)
- Toyota Tundra (2005-2020)
- Toyota Sequoia (2005-2022)
- Toyota 4Runner (2005-2009)
- Lexus GX470 (2005-2009)
