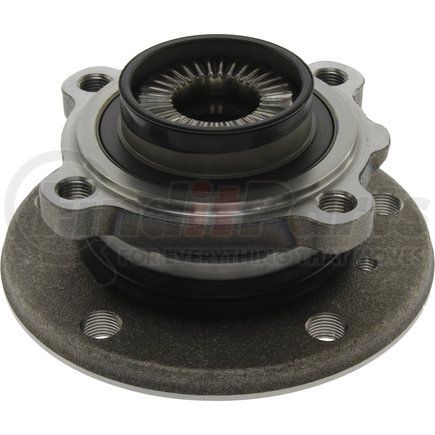

Centric 406.34010 - Centric Premium Hub and Bearing Assembly
We cannot fulfill orders for this part at this time. Please check back later or request a stock notification to receive an email.
Sometimes we may have similar parts for sale, click the button below to see if anything matches.
CENTRIC part description
Product Description
Centric Premium Hub and Bearing Assembly
Features & Benefits
- 100% O.E. Quality Components. Premium seals protect internal components. Exacting Fit and Function. Complete cataloging; featuring the latest applications and covering from 1940 to 2017
Product Attributes
| Bolt Circle Diameter [cntrc] In | 4.750 |
| Mounting Hole Qty [cntrc] | 4 |
| Product Grade [cntrc] | Premium |
| Bolt Circle Diameter [cntrc] Mm | 120.650 |
| Inner Mount Pilot [cntrc] In | 3.546 |
| Notes [cntrc] | Inner Drive Flange Splines 31t, Retaining Hole 1x M8-1.25 |
| Off-set [cntrc] Mm | 2.000 |
| Inner Mount Pilot [cntrc] Mm | 90.070 |
| Mounting Thread Pitch [cntrc] Mm | 1.500 |
| Off-set [cntrc] In | 50.800 |
| Thread Pitch To Wheel Mounting [cntrc] Mm | 1.500 |
| Mouting Thread Size [cntrc] Mm | 12.000 |
| Spline Quantity | 31 |
| Wheel Stud Size | 12.000 MM |
| Wheel Pilot Diameter | 72.390 MM |
| Wheel Pilot Diameter | 2.850 IN |
| Brake Pilot Diameter | 78.870 MM |
| Brake Pilot Diameter | 3.105 IN |
| Wheel Stud Quantity | 5 |
| Wheel Studs Included | Yes |
| Flange Diameter | 5.787 IN |
| Flange Diameter | 146.990 MM |
Additional Information
| Harmonized Tariff Code (HTS) | 8482105016 |
| NAFTA Preference Criterion Code | B |
| Country of Origin (Primary) | US |
| UPC | 00805890906117 |
Part Interchanges
Fits Vehicles
- BMW 340i GT xDrive (2017)
- BMW 230i xDrive (2017)
- BMW M240i xDrive (2017)
- BMW 340i xDrive (2016-2017)
- BMW M235i xDrive (2015-2016)
- BMW 228i xDrive (2015-2016)
- BMW 428i xDrive Gran Coupe (2015)
- BMW 435i xDrive Gran Coupe (2015)
- BMW 328d xDrive (2014-2018)
- BMW 335i GT xDrive (2014-2016)
- BMW 328i GT xDrive (2014-2015)
- BMW 435i xDrive (2014-2015)
- BMW 428i xDrive (2014-2015)
- BMW 320i xDrive (2013-2018)
- BMW 335i xDrive (2013-2015)
- BMW 328i xDrive (2013-2016)
